MEDX-IP MediaAccess KVM IP Extender, Full remote KVM access unit with additional features Virtual Media USB, Serial & IPMI control

Description:
The new MEDX-IP is a KVM IP Extender offering users a multitude of control features in one small compact unit.
Through its easy handling. It belongs to the smallest devices of its kind, still offers a complete remote management solution with a wide range of features.
256 bit SSL encryption of all tansmitted data
Thanks to an improved KVM IP technology a fast transmission of all keyboard, video and mouse signals is guaranteed, in highest video quality.

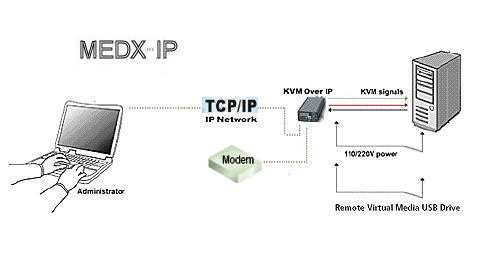

Allows you to control Keyboard Video and Mouse over IP plus connection to IPMI for computer power control, Serial connection and USB offering virtual media capability.

Features:
- Remote Access to a host using analogue video and USB and optional PS/2
- Remote virtual media emulation via USB (CD ROM, Floppy, Superfloppy)
- Optional remote Power on/off using either IPMI or external Power Switch
- Access over OS independent web interface and Java

KVM remote access
- Transmits video signals with up to 1600x1200 @ 60 Hz
- 24, 8,4,2,1 Bit video transmission, manual and automatic encoding
- Support of all standard VGA and VESA modes (graphics and text)
- Support of standard MAC and SUN modes
- Emulation of Mouse and Keyboard over USB
- Optional (with Replicator cable) emulation of mouse and keyboard using PS/2
- Compliant to actual KVM switches
- Resolution at the local port: 2048x1536 at 85Hz
Virtual Media Emulation
- USB based 1.4 MB Floppy emulation with up/download of a floppy image file to the unit based
-Superfloppy / CD ROM emulation using a CD ROM images stored on a Windows / Samba
network share
Remote Power On/Off
- Connects to a IPMI 1.5 enabled host computer
- Optional control of a external power switch device (IPM 220 – Item number #8400400,
replicator option needed)
- Optional control of third party power switching device using the transparent access to the
serial port (replicator option needed)
User front end
- Works with all state of the art web browsers (MSIE, Mozilla, Opera,…)
- Works with both the SUN JAVA VM and the Microsoft JVM
- Generic GUI based on HTML templates (can be adapted to OEM customer Look’n’ Feel)


Network connection
- Access via 10/100 Mbps LAN
- LED for link activity and 10/100 Mbps indication
- Communications over TCP/IP port 80 and port 443 (reconfiguration possible)
- IP-configuration with DHCP/BOOTP or static
- HTTP and HTTPS (secure) Web server
- Access via telnet protocol
- Support of standard Hayes compatible modems
- Speed of modem. up to 115200 bps
- Automatic adjustment of video compression ratio to available bandwidth
User front end functions
- Remote Control
- Video, Mouse, Keyboard
- International Keyboard support
-Free Window scaling
-User definable local cursor (SUN JVM only)
-
-Telnet access
- Power on/off
- Virtual Media
- Remote Floppy with 1.4 MB Image upload
- Remote CD ROM using a network samba/windows share
- User Management
- Password change
- User creation, editing and assignment to group profile
- Fixed group profiles predefined
- KVM Settings
- Keyboard Emulation (USB,PS/2, auto)
- User specific
- Transmission encoding (manual, automatic, enhanced)
- Remote Console Type (Default JVM, SUN JVM, Active X)
- Single Mouse Mode Hot Key
- Start up Options (Monitor Mode, Exclusive Mode)
-Video Settings
- Noise Filter
- Device Settings
- Network Settings (IP assignment, static IP address, bandwidth limit, Port assignment)
- Dynamic DNS setup
- IPMI (BMC address, IPMI over Serial, over LAN,….)
- Security (encryption method)
- Certificate (creation, maintenance)
-Serial Port 1(Configuration mode, Modem, Pass tru)
- Date and Time setting
- Event log setting
- Maintenance
- Firmware update via Webinterface
- Information on users logged in and Device specific information
- Event log list
- Unit reset
- Security
- SSLv3/TLSv1 encryption of all data with up to 256 bit
- Support of SSL certificate management
- Logging of all important events
- UP to 25 user profiles definable, three user levels (super user, administrator, normal user)
Restrictions
- The unit will usually live from the USB power, however the USB standard does not guarantee
the 700 mA power consumption of the unit. In case of uncertainty or if the unit does not work
on USB the use of the external power brick is needed
- In order to support BIOS access the host BIOS has to support USB legacy mode
- In order to boot from a USB emulation device the hosts BIOS has to support “booting from
USB”

Specification:
Technical data
- Dimensions: 95 mm (D) x 25 mm (H) x 72 mm (W)
- Housing: Aluminium silver anodized
- Weight: < 150 gr
- Power consumption: up to 700 mA
- External power supply unit: 5 V / 1.5A

Replicator Cable:
- Connector for local console
- HD 15 for local VGA
- PS/2 for local Mouse
- PS/2 for local Keyboard
- Serial interface using DB 9 connector
- PS/2 connectors for host mouse emulation
- PS/2 connectors for host keyboard emulation


~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~



FULL DETAIL
general
power 5 V, 1.5 A
power management via external box
KVM switch support compatible
network ip device setup static, bootp, dhcp
dns server setting yes
time server setting yes
port setup "yes, all ports
changeable"
bandwith limit definable yes
"Dyamic DNS support/
DSL support" yes
Serial Modem setup yes
IPMI over serial no
Telnet passthrough yes
Security HTTPS yes
Authentication internal
Logging internal e-mail, SNMP, NFS
Certificate yes
encryption SSL v3, TLS v1
IP access control no
IPMI IPMI support yes
IPMI over IPMB no
IPMI over LAN yes
IPMI over serial no
"Remote
Console" "Screen resolution local
(depends only on video
splitter bandwidth)" 2000x1600
Screen resolution at IP-Port 1600x1200
SUN support yes
MAC support yes
User management "3 user profiles
(super/user/admin)"
Screen Adjustment Auto or manual
"show bandwith consumption/
frame rate" yes
color reduction for slow clients yes
compression setting auto
Mouse synchronisation auto
support of 1:1 mouse yes
support of accelerated mouse yes
support of single mouse yes
selection of local mouse cursor yes
Keyboard support PS/2, USB
Mouse support PS/2, USB
Monitor mode yes
exclusive access for one user yes
KVM port specific video and mouse settings no
remote console binary "Sun Java, Active X
Control "
Java telnet console built in yes
scaling of console window yes
scale to fit of window yes
Keyboard layout settings yes
Softkeyboard yes
"virtual floppy/CD ROM via USB mass storage
and Drive Redirection" yes
Video Quality analog
