VSP-5DVI Rose DVI Video Splitter, 1 video input, 4 video output ( DVI Splitter )

DVI Splitter 4 port

Description:
Video Splitter DVI is a flexible and specialized device that splits video from a single source to up to 8 different monitors with no degradation of video quality. It allows you to connect a single DVI-D or VGA video source to multiple DVI-D or VGA monitors using a DVI-I single-link video connector. High quality crystal clear resolutions up to 1920 x 1200 @ 60 Hz can be achieved on each display.
All models have standard DVI-I connectors



Installation
The installation of the Video Splitter DVI is as easy as connecting your DVI video source to the DVI input connector, connecting your DVI video equipment to the DVI output connectors, and positioning the
feature switch to PC or HDTV depending on
the application. Connect the +5 VDC power adapter, turn everything on and its ready to use. No configuration is needed.

Video Splitter DVI is offered in three models:
1x2 - The two-port model takes a single DVI video input and distributes it to two DVI outputs.
1x4 - The four-port model distributes the video signal to four DVI outputs.
1x8 - The eight port model distributes the video signal to eight DVI outputs.

Features:
Splits digital video from a single DVI video source to 8 digital outputs
Display output on digital displays, HDTVs, or video projectors
Video resolution up to 1920 x 1200
Supports digital and analog video
Units can be cascaded


1 x 2, 1 x 4, and 1 x 8 models available
 Supports Single-link video
 Standard DVI-I connectors
 Supports digital or analog video
 Video resolutions:
 Up to 1920 x 1200 @ 60Hz
 Easy to install, no configuration needed
 Compliant with DVI 1.0 specifications
 Video output #1 is used for the main display.
The other outputs follow output #1.
 DDC information is obtained from the monitor
connected to output #1
 No degradation of video quality using the
maximum DVI cable length of 32.8 feet.
 Units can be cascaded to display the input image to additional monitors














- DVI video output #1 is used for the main display. The other outputs follow output #1.

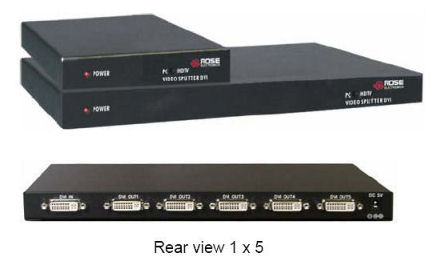

DVI Splitter rear views of different size units

Specification:
Dimensions Width Depth Height Weight

1 x 5 (in) 11.8 4.45 0.98 2.0 lbs
(mm) 300 113 25 990 g


Bandwidth 1.65 Gbps (Single link)

Resolution 480, 720, 1080 i/p
VGA - WUXGA
WUXGA Monitor resolution 1920 x 1200

Connectors DVI IN – DVI-D (1) DVI Out – DVI-D (2 or 5)

Power 1 X 2 – 7W , 1 x 5 – 7.5W

Power Adapter 100 – 240 VAC to +5 VDC / 2A

Environment
Operating Temp. 32°F - 122°F (0°C - 50°C)
Storage Temp. 14°F - 158°F (-10°C - 70°C)
