PDUeX-MN-32A-01V PDU eX Inline Power Monitor 32A 230V IEC309 Inlet, (1) x IEC309 Outlet

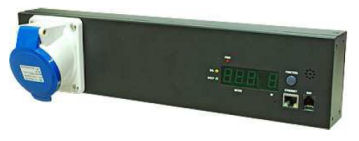

Single inline Monitor 230V

Description:
PDUeXpert Single port 32 Amp Inline Power Monitor Unit.
This unit allows an administrator to monitor PDU power consumption information from a remote terminal and interface. Combine Power Distribution with the ability to monitor network equipment power draws. Each TRiPower Monitored PDU series has a LED digital display indicator which provides an accurate, real-time reading of the aggregate power load in amps on each power circuit in the rack. This can be helpful if a remote machine has gone into a power overload state and an administrator can handle immediately to avoid power failure.
PDUeX Monitored PDU Series you can:
· User Defined Alarm Thresholds for Warning and Overload
· Total Power Monitoring
· Receive SNMP alerts when power or environmental conditions exceed
thresholds
· Email, Trap, Audible Alarm
Information provided by the PDUeX Monitored PDU Series is displayed at the strip
via Digital True RMS Current Meter LED display, and remotely via a Web browser.
PDUeX Monitored PDU Series products give the necessary flexibility for all
datacenters, comms rooms and remote sites; and protocols such as: HTTP, HTTPS,
SNMP, DHCP, UDP.
PDUeX Monitored PDU Series offers secure access with SSL encryption and strong
passwords.
PDUeX Monitored PDU Series comes with FREE OF CHARGE PDUeX PDU
Management Software. This gives managers of datacenters the capacity to manage a
large installation of TRiPower PDU from one single (web) interface.

Features:
> Power Monitor;
Total Power Monitoring
> Protocols;
Http, Https, SNMP,
DHCP, UDP
> Alarm Thresholds;
User-Defined Alarm
Thresholds for Warning
and Overload
> Event Alerts;
Email, Trap, Audible
Alarm
> Temp/Humidity;
Per Model
> Approvals; CE, Ro HS, UL

Current Meter Digital True RMS Current Meter/
Power Monitoring Remote Total Power Monitoring by Meter, Web, SNMP
Free TRiP PDU Management Software
Protocols Http, Https, SNMP, DHCP,UDP
Alarm Thresholds User-Defined Alarm Thresholds for Warning and Overload
Event Alert Email, Trap, Audible Alarm

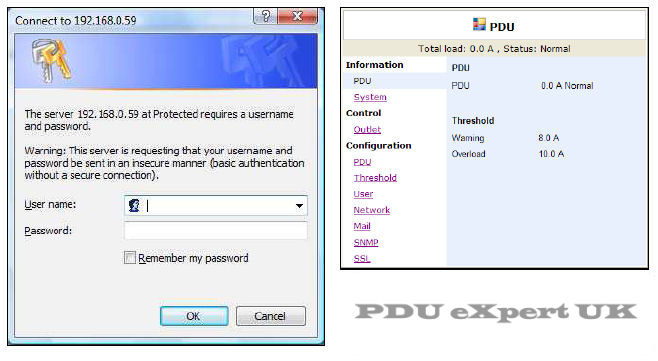

PDUex screenshots

Specification:
PDU eX Inline Power Monitor 32A 230V IEC309 Inlet, (1) x IEC309 Outlet


Output (1) IEC320 309
Input (1) IEC320 309 attached power cord 3M.
Protection (0)
COMMUNICATION
SSL Indication (1) Yellow LED
DHCP Indication (1) Green LED
Network (1) RJ45 for Ethernet
Circuit Status (2) Red LED
Temp. /Humidity (1) RJ11 for Env. Probe
PDU ID (1) Digits seven segment for PDU Identification
Current Meter 3 Digits Seven Segments for True RMS Meter
Range: 0A ~ 20 A
Resolution: 0.1A
Precision: +/-2%+/-0.1AMP
OPERATION
Nominal Voltage 230V
Voltage 200V~240 full range
Frequency 50/60HZ full range
Max.Output Current 32Amp
Temperature 0 ~ 40 Celsius degree
Humidity 0% ~ 90%
Size 88 x 380 x 44 mm
Weight 2kg
Regulatory
Approvals
CE, EN 55022 Class A, EN 55024,EN 61000-3-2,EN
61000-3-3
C-Tick AS/NZS CISPR 22: 2006
UL
