CC-E1 DUPLICATE

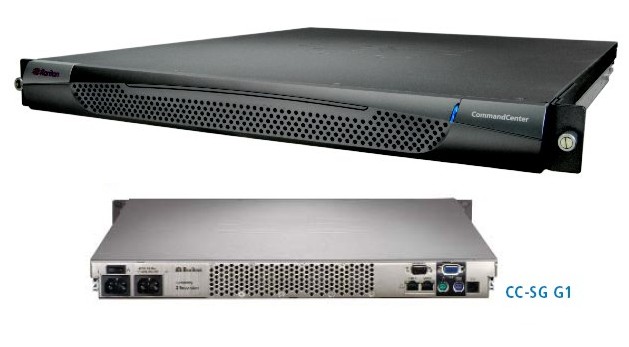

Command Center SGG1

Description:
UNUSED PAGE

Features:
- Secure, single sign-on to a single IP address for managing all of Raritan’s Dominion® KVM-over-IP switches, serial console servers, Paragon® II analog KVM switches and PX™ intelligent PDUs
- Single point of access to physical servers (including blade systems, PCs and servers), virtual machines and VMware® infrastructure such as the ESX/ESXi server and VirtualCenter environments
- Remote access and power control using HP® integrated Lights-Out (iLO), Dell® Remote Access Controller (DRAC), IBM® Remote Supervisor Adaptor (RSA) and IPMI service processors, plus RDP, VNC, SSH and Telnet in-band applications
- Available as a rack-mountable hardware solution or a VMware, Hyper-V or XenServer virtual appliance
- HTML Access Client interface, which allows the user to easily locate managed equipment in customizable views, including favorites and recently accessed systems
- Centralized, role-based policy management, including controlled access privileges
- Wide, flexible array of client choices, including mobile client for access from smart phones and tablets and Java-free Windows Client
- Universal Virtual Media™ support through Dominion KX II and KX III devices  Consolidated logging and audit trail, including detailed activity reports
- Support for Dominion KX II and KX III
- Support for Dominion SX & SX II
- Virtualization: Integration of VMware
- Access to Blade Servers Connected to Dominion KX II and KX III Devices
- Support for Raritan’s Dominion PX
- Access to In-Band Applications and Embedded Service Processors
- Robust Security
- Neighbourhood Configuration
- Cluster Configuration for Hardware Appliances
- Web Browser Access to Various Web Based Devices and Systems
- Mobile access from Apple Smart Phones and Tablets
- Auditing and Audit Trail Reporting
- Remote Monitoring and Capacity Planning Tools
- Streamlined Raritan Device Firmware Upgrade Process
- DRAC 6 Support
- HP iLO, iLO2, iLO3 and iLO4 Support
- Personal View Customization Using Node Groups
- Virtual Media Supported
- WS-API Support
- Control Power for Servers Connected to any PDU Supported by Power IQ
- Synchronize Data with Power IQ
- Data Import/Export via CSV Files
- Virtual CC-SG Evaluation Version
- NET™ KVM Client for Java-free Support
- Windows 7 & 8 Support

Command Center SETUP typical example

Specification:
P/N: CC-V1

Features V1
Form Factor 1U
Dimensions (DxWxH) 7.3" x 24.2" x 1.75"; 615 x 440 x 44 mm
Weight 23.8 lbs; 10.8 kg
Power Single Supply (1 x 300 watt)
Operating Temperature 10° - 35° C; 50° - 95° F
Mean Time Between Failure (MTBF) 38,269 hours
KVM Admin Port DB15 + PS/2 or USB Keyboard/Mouse
Serial Admin Port DB9
Console Port 2 x USB 2.0 Ports
Hardware
Processor Intel® Core™ 2 Duo E8400
Memory 4 GB
Network Interfaces (2) 10/100/1000 Eth. (RJ45)
Hard Disk & Controller (2) 80 GB SATA @ 7,200 rpm, RAID 1
CD/ROM Drive DVD-ROM
Remote Connection
Protocols TCP/IP, UDP, IPv4/IPv6, RADIUS, LDAP, TACACS+, SNMPv3, SMTP, HTTP, HTTPS
Warranty Two years with advanced replacement*, Guardian® extended warranty also available
Software Maintenance One year maintenance free with purchase Additional years can be purchased Software updates available with maintenance
