IPS-IPWRSWITCH4X32 4 x Input 4 x Output 32 Amp ( 128 Amps Total ) IP Power control and Management Unit

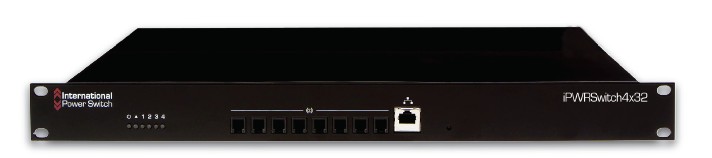

IPS-IPWRSwitch4x32 Front View

Description:
4 x Input to 4 x Output 32 Amp ( 128 Amps total ) IP Power control and Management Unit.
The unique 5–in–1 system combines remote reboot facilities, environmental monitoring system, power metering, alarm system and security.

SPECIAL ORDER PRODUCT

Particularly useful for rebooting CISCO high end routers 4500 ans 7600 Series.

The IPS-IPWRSWITCH4X32 is the only product on the market today, with this flexibility.

The IPS-IPWRSWITCH4X32® International Power Switch enables you to manage and control your company’s power for servers and network equipment remotely from any location in the world. Every power outlet can individually be turned-on, turned-off or rebooted.

SEE FREE MANAGEMENT SOFTWARE TO KNOW ALL FEATURES under compatible products.

A wide range of sensors can be connected and used in the system in order to monitor the levels of e.g. temperature, humidity, smoke, water level, dry-contact/deadbolt and others.

The IPS-IPWRSWITCH4X32 monitors and controls the level of power consumption for every single power outlet.

The IPS-IPWRSWITCH4X32 makes it possible to avoid power surges and UPS overloads by controlling power-on and power-off sequences.

Based on sensor values, outlets can be programmed individually to turn the power on and off. Warnings are sent via e-mail or SMS from the IPS Power Management Software.

The IPS-IPWRSWITCH4X32uses SSL 3.0 encryption. Each Power Switch is configured from the factory with a unique username and password for maximum security.

The IPS Power Management Software configures and controls your power outlets, the Power Switches and their sensors. The software can supervise all installed sensors and react on all events in a predefined way.
THIS IS CURRENTLY A WINDOWS ONLY BASED SOFTWARE ALTHOUGH FUTURE SUPPORT FOR LINUX IS IN HAND.

The unique scalability of the IPS-IPWRSWITCH4X32 makes you able to control and manage from 4 32 Amp terminals, linked via other units to more than 60,000 power outlets to your servers and network equipment. Furthermore, you will be able to monitor and manage more than 200.000 individually defined sensors like temperature, humidity, water and smoke. 30 sensors can be connected to each IPS-IPWRSWITCH4X32 or IPS-iPWRSwitch8.

With a 32A inlet. This means that you can now use the unit with even more power consuming units.

The IPS-IPWRSWITCH4X32 is easily connected to and installed in the network via TCP/IP. When extending with more Power Switches you simply plug them into the network with their own IP address.

Easy accessible interface allows integration into other systems via SOAP / API.

The processor capacity of the IPS-IPWRSWITCH4X32 is strongly dimensioned from the origin, making it possible to upgrade with extended functionality and intelligence in future versions of the IPS Power Management software.

Features:
Power
Remote Power On
Remote Power Off
Remote Power

Cycle Measure Power consumption on each outlet (4)

Sequencing
Power up Sequencing
Power down Sequencing
Control time betweensequences

Sensors
built in Time sensor
built in Date sensor
built in Current sensors(4)

External Sensors (Purchased separately):
• Temperature
• Smoke
• Water level
• Door Contact
• and more via generic sensors

Software
Manage
Control more than 60.000 outlets
Monitor more than 200.000 sensors

User definable views:
• Powerswitchs
• Outlets
• Sensors
• Hardware

Distinguish between operation mode and configuration mode

CLI (Command Line Interface)
API (Application Programmable Interface

Specification:
Input
Nominal input voltage. . ...................100-240 VAC
Input frequency ............................50/60 Hz Input Connections. ............................... 4

EU: Maximum input current ..................32A/inlet

Output
Nominal output voltage ..................100-240 VACOutput Connections. .............................. 4EU Maximum output current .................32A/outlet

Environmental
Operating environment ...................... 0-45 oCOperating relative humidity ....................0 - 95%Storage temperature. ...................... -25 - 65 oCStorage relative humidity .....................0 - 95%

Sensor Input/Output
Connector type. ....................RJ11 / FCC 68 4/4

Ethernet communication
Connector type .....................10/100 Mbit RJ45

Product
Dimensions:Height ..........................4,44 cm (1.75 inch)Width .........................48,25 cm (19 inches)Depth .........................30,48 cm (12 inches)

Shipping Dimensions:Height ..........................5,50 cm (2.2 inches)Width ..........................51 cm (20,1 inches)Depth ........................38,86 cm (15,3 inches)
Color ......................................Black

Conformance CE

Warranty 2 years repair or replace

CONTROL SOFTWARE ON NETWORK:
THIS IS CURRENTLY A WINDOWS ONLY BASED SOFTWARE ALTHOUGH FUTURE SUPPORT FOR LINUX IS IN HAND.
