Peppercon 8400400 IPM 220-L power ( Local Single Port Switch Unit )

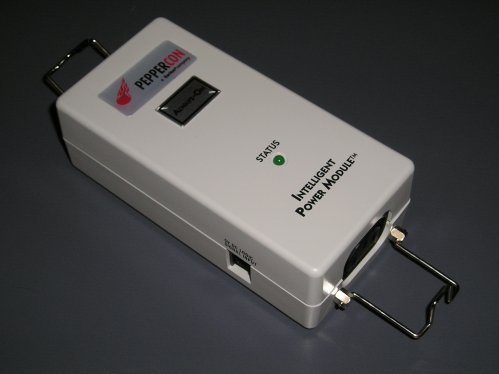

Peppercon IPM220L

Description:
END OF LIFE - Please contact us for a replacement product




Peppercon IPM 220 ( Peppercon only Local serial single port power switch)

This small unit is provided with an RJ11 control cable and Serial type D9 Adaptor for connection to Peppercon Serial control devices only.
IP Access and control is via a compatible Peppercon IP Access device see compatible products.
The Peppercon IPM 220 -L is a power inline device IEC 320 10 Amp Input and IEC 320 10 Amp Output to simply control the power on or off


For smoothly using one or more servers it is often necessary to be able to control the power of all respective devices from afar but this unit is for single power line control.

Made for use at the frontend of any of Peppercon's remote management tools
the Peppercon IPM 220-L unit is compatible with all of the Peppercon remote access via IP products that have a serial ouput control port.

Features:
- Small compact size unit.
- Provided with an RJ11 control cable and Serial D9 Adaptor for connection to Serial control devices.
- Simple power inline connection to simply control the power on or off
- standard connection IEC 320 10 Amp Input and IEC 320 10 Amp Output

Specification:
Peppercon IPM 220 (single port power inline switch)

Peppercon only support this unit to work with or from Peppercon IP Access Products. Warning this product is not made with use with other third party or direct serial connections.

1 x RJ11 Serial type control port
provided with RJ11 Cable and D9 Serial port adaptor for connection only to Peppercon control devices.

Power inline Switch device
1 x IEC 320 10 Amp Input
1 x IEC 320 10 Amp Output
