0SU52015 Minicom UPM Single User Management Unit Phantom Manager ( For PHANTOM SYSTEM ) OSU52015

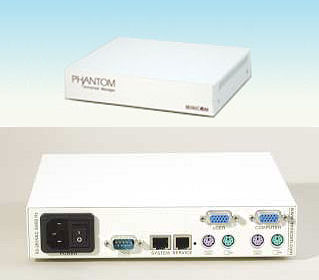

Phantom UPM

Description:
DISCONTINUED CALL FOR ADVICE AND REPLACEMENT


Minicom UPM Single User Management Unit Phantom Manager ( For PHANTOM SYSTEM )

The Phantom Specter System, the first ever distributed micro-sized KVM switch, is especially designed for single user KVM management of up to 63 servers on a single line making it the ideal solution for high density server and rack environments like server farms, data centers or corporate server rooms. The micro-sized Specter provides much more power than a conventional switch by freeing up rack space, eliminating cable clutter and maximizing your flexibility.
Advanced Management and Security Options The Phantom Specter features advanced On Screen Display (OSD) management, including multi-layered security, the most efficient way for monitoring, accessing and controlling your servers.
You can also manage your Phantom system, via a serial port, using the Phantom's Control Software or any other third party software. Less Switch Space Means More Server Space Phantom's Distributed Switching Technology (DST) divides the KVM switch into smaller subunits: a Manager and multiple Remote units. The Remote units can be placed inside the servers (PCI Cards) or on the side or back of the rack (Specter Units) where they occupy no rack space! Now you can dedicate more of your rack to servers instead of wasting space on switches. Components. The Phantom Specter system consists of two separate units: * 1 Universal Phantom Manager (UPM) unit per system
* 1 Remote unit per computer (Specter) up to 63 per line

Features:
Single user control of up to 63 servers on a single line

Zero U rack space - more room for servers

Advanced OSD management and multi-layered security

Pure hardware solution - BIOS level access

Low density CAT5 cabling that ends cable clutter

Scalable - buy only what you need and add as you grow

Flexible server/KVM console placement up to 110m/360ft away

No external power supply at Specter units

3 year warranty

Phantom spector setup

Specification:
System

Number of Remote units
63

System Cable
CAT5 FTP 2x4x24 AWG Solid Wire

Maximum Distance
110m/360ft

Resolution
Up To 1600x1200@75Hz

Mouse Support
PS/2, Wheel mouse, 5-Button mouse, Microsoft Intellimouse

Operating Systems
DOS, Windows (3x, 9x, 2000, NT4, ME, XP and later), LINUX, UNIX, HP UX, QNX, SGI, FreeBSD, BeOS, Open VMS, Novell 3.12 - 6, SUN Solaris

Management
On Screen Display (OSD), RS-232 Control Software

Security
Password, multiple user profiles

Scan
Automatically view all screens at adjustable intervals from 5-995 seconds

Operating Temperature
0° C to 40°C/32° F to 104°F

Storage Temperature
-40°C to 40°C/-40°F to 104°F

Warranty
3 years

Manager Unit

Type
Universal Phantom Manager (UPM)

Cables & Connectors
CPU Cable - 3 in 1
Screen - HDD15F
Keyboard - MiniDin6F
Mouse - MiniDin6F
System Out - RJ45
Service - RJ11
RS232 - DB9M

Rack Mountable
Yes

Dimensions
41.5Hx180Dx204.5Wmm / 1.63Hx7.09Dx8.05W"

Power Consumption
85-265 VAC 600mA
