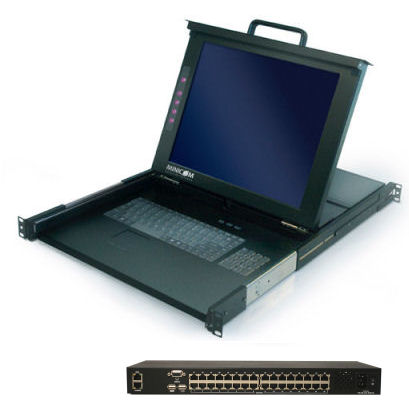

OSU52098 Minicom SMARTRACK 232 17" LCD KVM Drawer with 2 local to 32 Ports ( Combined KVM Rack Console and KVM Switch 1U )

SMARTRACK KVM Drawer 1-32

Description:
CURRENTLY UNAVAILABLE

The Smart, Space-Saving Solution for KVM access

At the rack, every bit of space is valuable. The SmartRack 232 helps IT administrators impose order on the chaos of overcrowded server rooms by seamlessly integrating two essential elements, an LCD drawer and a KVM switch. With centralized management of up to 32 servers, IT personnel have a powerful tool for streamlining workflow at the rack. By reducing cable clutter, the SmartRack 232 gives IT managers sorely needed room in the data center. This extra room translates into money saved, as less racks are needed for the data center.
The SmartRack 232 is an integrated KVM switch for two users, with simultaneous access and control of up to 32 mixed-platform (PS/2 and USB) servers. The SmartRack 232 is based on Minicom's innovative ROC technology, in which each computer/server is directly connected to the switch via the ROC using a standard CAT5 cable at a distance of up to 30m/100ft in a star configuration.
Security:
The SmartRack 232, designed to prevent unauthorized access and security breaches, is the secure solution for built-in KVM access at the rack. The SmartRack 232 has multi-layer security through the OSD, and ensures that only authorized users can control or access the servers.

Leverage Your Location With Extended Option:
The SmartRack 232 has the option of extending the location of a second user via CAT5 with Minicom's KVM Extender USB up to a distance of 150m/500ft. This flexibility means that the SmartRack 232 can accommodate the needs of data centers as they change and grow.
SmartRack 232: Part of the Product Family
Minicom has a proven track record of increasing IT infrastructure efficiency and making the most of physical limitations in the data center. The SmartRack 232 joins Minicom's established, successful product line of space-saving LCD drawers with integrated KVM switches

Features:
• Combined KVM switch and rack console for ease of use
• Supports multiple platforms (PS/2, USB) and mixed server
environments
• Occupies a mere 1U of rack space, adjustable to various rack depths
• Sophisticated control options with multi-layered security
• Plug-and-play installation
• 17” TFT LCD display

• Utilizes just 1U rack space for LCD drawer with built-in KVM switch for two users for up to 32 servers
• Eliminates cable clutter at the rack with CAT5 cable ROC technology -
up to 30m/100ft between PS/2 or USB computer and switch
• Field firmware upgrade for the switches and ROCs
• Adjustable rack depths (470 to 814mm/18.5 x 32inch)
• 17” TFT LCD display
• Supports multiple keyboard languages
• Option of extending the location of a second user up to a distance of 150m/500ft

SMARTRACK KVM Drawer 1-32 typical setup

Specification:
Console Display
17"

Operating systems
Dos, Windows (3.1, 9X, NT4, ME, 2000, XP) Novell

Panel Type
Active Matrix TFT LCD

Maximum Resolution
1280X1024

Pixel Pitch
Supports 0.264mm

Viewing Angle
Right-Left view 60º -70 º
Up-Down View 45 º - 60 º

Contrast Ratio
18/01/1900 18:01:00

Brightness
White 250cd/m2

Standard for Pixel Defects
Sharp Standard for TFT LCD 3-3-5 (LDI-15XRA01)

Back Light
Four lamps for back light

Supported Colors
16.2M Colors

Keyboard Mouse
106 key PS/2 keyboard with touch pad

Sync
45~80HZ

Power Source
100-240 VAC input

Power Consumption
25W, 19.05w / 21.05w for panel

Operating Temperature
0º - 40º C/32º - 104º F

Storage Temperature
20º - 40º C/-4º - 104º F

Humidity
10%~90%RH

Response Time
Rising time 2-6ms Delay time 14-24ms

Dimensions
640x447.5x44mm / 25.1x17.6x1.7in

Chassis Construction
Heavy duty steel materials

Number of Ports
32

Multi Platform
Supports PS/2, SUN and USB via ROC

System Cables
CAT5 FTP or UTP 2x4x24 AWG solid wire

Dimensions
169x420x44mm / 6.6x16.5x1.7in

Computer to switch Distance
Up to 30m/100ft

Power Source
Internal power supply 100~220 VAC
