ICR-00-00403 ICRON USB 2.0 Ranger 2311 1Port USB 2.0 100m CAT 5e/6/7 Extender System with Flexible Power ( 100Mtr Range USB 2.0 USB EXTENDER ONLY )

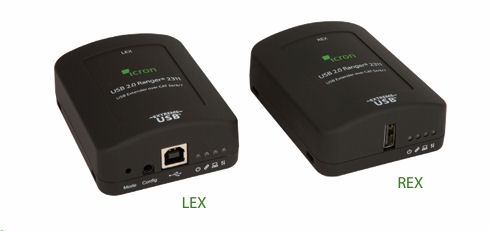

ICRON RANGER 2311-0403

Description:
The USB 2.0 Ranger® 2311 Transmitter and Receiver set extends high-speed USB 2.0 connections up to 100m using
CAT 5e/6/7 with the option to power either the LEX (Local Extender) or REX (Remote
Extender).

Features:
The Ranger 2311 is ideal for extending USB peripherals including: keyboards, mice, interactive
whiteboards, flash drives, hard drives, audio devices, web cameras and any other USB device.
■ Flexible power — connect the power adapter to either the LEX or REX
■ Supplies up to 1 Amp to USB port
■ Mass Storage Acceleration for USB 2.0 device bulk transfers
■ Supports throughputs of up to 480 Mbps
Includes the ExtremeUSB® suite of features:
■ Transparent USB extension
Applications
■ Plug and play; no software drivers required
■ Works with all major operating systems: Windows®, macOS™ and Linux®
■ Interactive white board
■ Sensor/data acquisition

■ Keyboard and mouse extension
■ Industrial control



Specifications subject to
change without notification.
©2016
Icron Technologies Corp.
#90-01490-A01

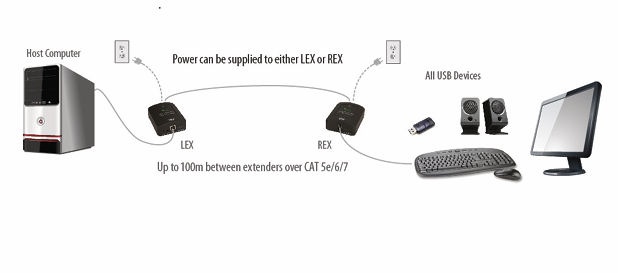

RANGER 2311-0403 setup

Specification:
RANGE
Direct Connect:
SPEEDS
USB 2.0:
USB 1.1:
POWER
Power Supply:
LEX (LOCAL EXTENDER)
USB Connector:
Link Connector:
Dimensions:
Mounting:
Enclosure Material:
REX (REMOTE EXTENDER)
USB Connector:
Link Connector:
Available Current:
Dimensions:
Mounting:
Enclosure Material:
ENVIRONMENTAL
Operating Temperature:
Storage Temperature:
Operating Humidity:
Storage Humidity:
COMPLIANCE
EMC:
Environmental:
Safety:
SUPPORT
Warranty:
Up to 100m (330 ft) over CAT 5e/6/7
Up to 480 Mbps
Up to 12 Mbps
100-240V AC Input, 24V 1A DC Output
1 x USB Type B Receptacle
1 x RJ45
65.0mm x 87.5mm x 30.0mm (2.6" x 3.4" x 1.2")
Slots for Cable Ties
Black ABS with Rubberized Coating
1 x USB Type A Receptacle
1 x RJ45
Up to 1 Amp to USB port
65.0mm x 87.5mm x 30.0mm (2.6" x 3.4" x 1.2")
Slots for Cable Ties
Black ABS with Rubberized Coating
0°C to 50°C (32°F to 122°F)-20°C to 70°C (-4°F to 158°F)
20% to 80% relative humidity, non-condensing
10% to 90% relative humidity, non-condensing
FCC (Class A), CE (Class A)
RoHS2 (CE)
Flammability V-0
2-year





PART: 00-00403
USB 2.0 Ranger® 2311 - UK
1-Port USB 2.0 Flexible Power CAT 5e/6/7 100m Extender System, 100-240V Power Adapter, UK Power Cord
