ALPV154T / UK AdderLink 4 Way Transmitter Unit for Line Powered VGA extender over CAT-X cable UK *DISCONTINUED*

ALPV154T
pmrcb1123

Description:

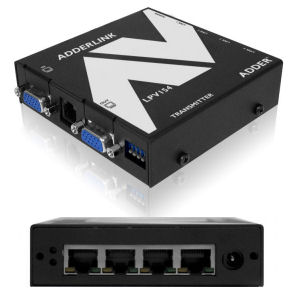

The ALPV154T-UK AdderLink 4 Way Transmitter.
The ADDERLink LPV delivers HD quality digital signage video via CATx cable over distances of 150 metres

This digital signage extender is possibly the easiest to install point-to-point extender available today. By transmitting the power to the receiver via the cable it removes the need for extra power supplies and sockets at the screen.

A 4-way transmitter is available for point-to-multipoint transmission.

Features:
Video performance -
Full HD 1080p, 1080i & 720p
Distances up to 150m (500ft)

Line power for simplicity -
To help reduce cable clutter, the ADDERLink LPV150 has been designed to be powered by a USB port on your computer. Furthermore, this power is also transmitted alongside the video over the CATx cable, in turn powering your receiver unit.

4-way transmitter for point-to-multipoint -
The ALPV154T is able to take the same HD input and send it to 4 different screens connected via the ALPV150R receivers. There is a feed through port on the unit to allow a local display or you can cascade another ALAV154T so you can supply 8 screens.

Video sharpness adjustment-
The remote module has a video adjustment screw to control picture sharpness on the display screen.

Absolute simplicity -
Getting into professional digital signage has never been so easy. Simply plug the transmitter's VGA port into your computer and plug in the USB port, then plug the receiver unit into your screen. Finally, connect the two units together with a length of CATx cable, and you're finished. Now start delivering your message to customers, clients, staff or whoever you wish.

Advanced EDID cloning -
The ADDERLink LPV enables the user to clone the EDID (Extended Display Identification Data) from a display or use a default EDID. This approach enables the widest possible compatibility whilst also providing a plug and play experience for most applications.

On/off control via RS232 -
The LPV154T unit is fitted with a serial port that enables you to remotely switch video on and off. This feature provides a simple way of switching remote screens on and off as most will go into standby when the video signal is removed.

Rack mountable -
The LPV154T units are rack mountable at high density using the AdderLink rack mount chassis.

Fit and forget -
Adder digital signage products are the professional choice because they give you the ability to deliver, fit and forget installations. The LPV is no exception.

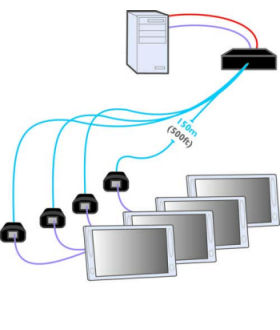

ALPV154T typical setup - receivers not included see compatible products

Specification:
Video Resolution

Maximum of 1920x1200@60Hz
Extension Distance

150 meters at 1920 x1080@60Hz
Max cable skew allowed

25ns over maximum cable length. Recommend low skew cables over 50 meters (see manual)
O/S Compatibility

Operating system independent
Connectors

USB Type A ,15 pin VGA and one RJ45 port. (ALPV150P) 2 x 15 pin VGA, 4 x RJ45, 1 x power, 1 x 4P4C RS232. (ALPV154T)
Power

LPV 150P USB powered (Max 500mA @5V)
LPV154T 5V @ 2.5A, power unit provided
Physical

Transmitter
High impact injection moulding 45mm (w), 63 mm (l), 21mm (d) - excluding cables
Receiver
High impact injection moulding 45mm (w), 63 mm (l), 21mm (d) - excluding cables
ALPV154T

Steel enclosure: 100mm (w), 100 mm (l), 25mm (d)
Operating temperature

0-40 deg C
Approvals

CE, FCC
Order Codes

ALPV154T-XX

XX= Mains Lead Country Code:
UK = United Kingdom
US = United States
EURO = Europe
AUS = Australia
Optional Accessories

ALPV150R: Adder line powered VGA Extender receiver unit;
ALAV-RMK-FASCIA: Rack mount fascia plate;
ALAV-RMK-CHASSIS: 19" rack mount chassis
