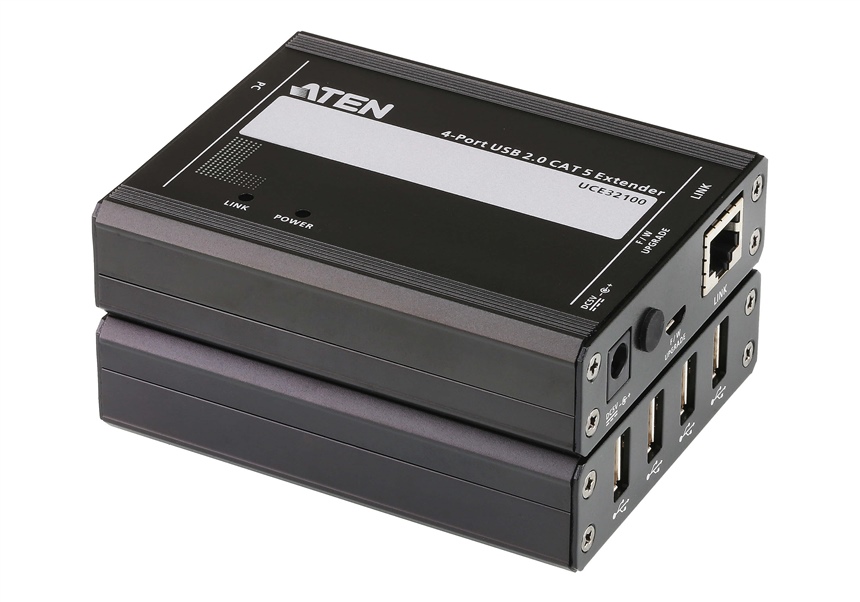

UCE32100 ATEN 4-Port USB 2.0 Cat 5 Extender, USB-A (up to 100m) USB Extender

ATEN - UCE32100 USB 2.0 Extender

Description:
The UCE32100 is a 4-port USB 2.0 CAT 5 Extender is a two-unit device that serves as a Local Unit (Tx) and Remote Unit (Rx). It provides a durable, high quality connection that harnesses the full capability of the USB 2.0 standard, to ensure reliable data communication.

The UCE32100 can extend the USB transmission distance of up to 100 meters from your computer via an Ethernet cable. The power supply at the receiver UCE32100 unit helps provide sufficient power to any type of USB device, such as POS, flash drives, webcams, scanners, or printers, etc.

A true plug-and-play solution, the UCE32100 is compatible with all leading operating systems. With its durable metal housing, this high-quality USB extender provides a fast and flexible solution for industrial applications. In addition, the compact size with wall mounting and din rail included enables space-saving installation.

Note: Please visit ATEN Support Center to view the test report for the compatible webcams for more information.

Features:
• True USB 2.0 transparent extension over Ethernet cable up to 100 meters
• Supports all USB 2.0 devices up to 480Mbps
• An integrated four port hub allows for extension of up to four USB devices without the need for an additional hub
• Power supply for remote unit to ensure power delivery to multiple devices at once
• Compact size with wall mounting and din rail included for flexible installation
• DC jack lock kit included to ensure durable power adapter connection
• Supports Windows®, OS X®, and Linux®
• Plug-and-play

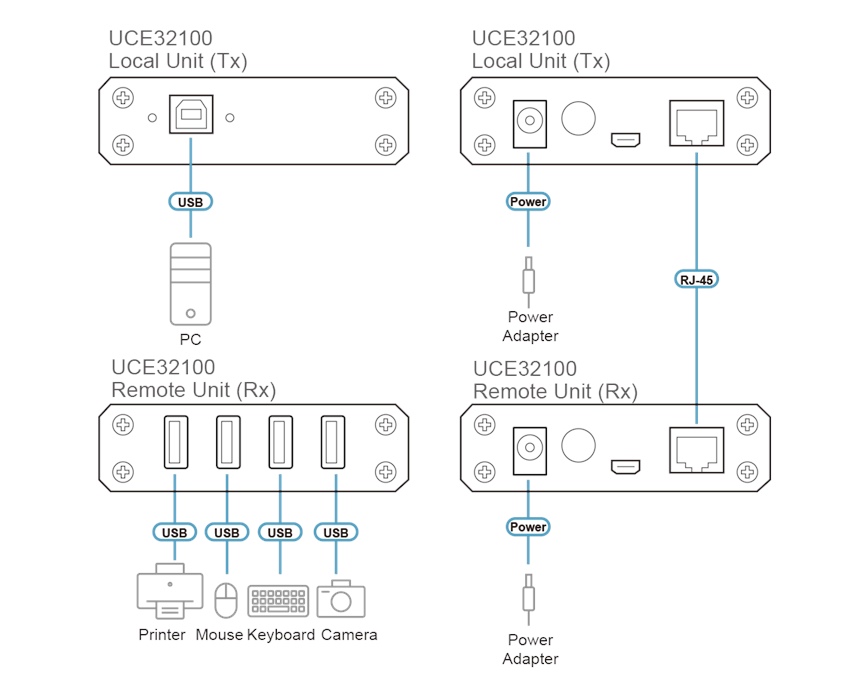

UCE32100 Diagram

Specification:
Package Contents

1x UCE32100 4-Port USB 2.0 CAT 5 Extender Local unit (Tx)
1x UCE32100 4-Port USB 2.0 CAT 5 Extender Remote unit (Rx)
1x USB 2.0 Type-A Male to Type-B Male Cable
1x Power Adapter
1x Power Cord
4x Mounting Kit
2x Din Rail
2x DC Jack Lock Kit
2x Rubber Feet Sets
1x User Instructions

Local Unit
Upstream Port 1 x USB Type B Female
Downstream Port 1 x RJ45 Female
1 x Micro USB Female (Firmware Upgrade)
Power 1 x DC Jack
Remote Unit
Upstream Port 1 x RJ45 Female
Downstream Port 4 x USB Type A Female
1 x Micro USB Female (Firmware Upgrade)
Power 1 x DC Jack
USB Specification USB 2.0 High-Speed
Cable Type Ethernet Cable
Signal Range 100m
LEDs
Status 2 x LED
Power Consumption DC5V:1.708W:8BTU/h
DC5V:1.649W:50BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 70°C
Humidity 0–80% RH, Non-condensing
Physical Properties
Weight 0.21 kg ( 0.46 lb )
Housing Metal
Dimensions (L x W x H) 10.15 x 7.90 x 2.44 cm
(4 x 3.11 x 0.96 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
