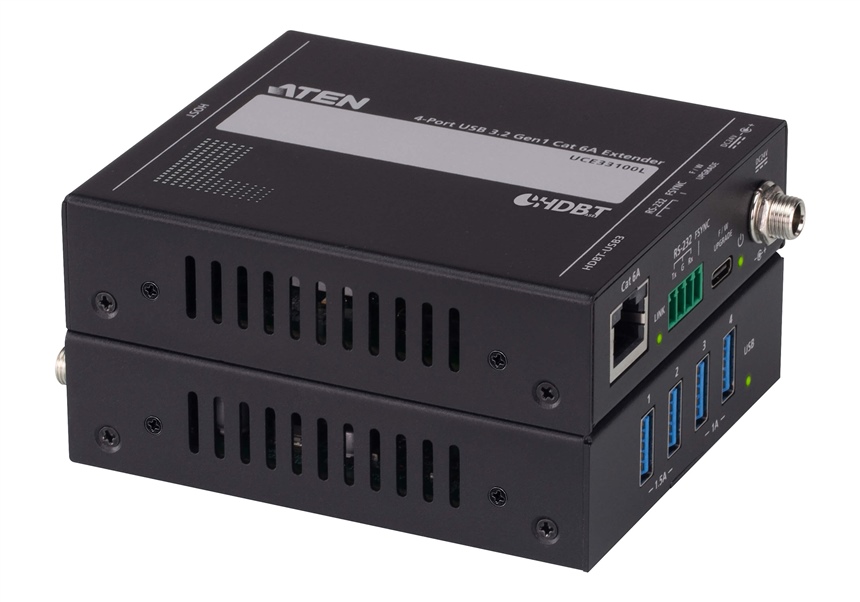

UCE33100 ATEN 4-Port USB 3.2 Gen 1 Cat 6A Extender, USB-A (up to 100m) USB Extender

ATEN - UCE33100 USB 3.1 Extender

Description:
The UCE33100 is a two-piece extension kit that transmits uncompressed USB 3.2 data at up to 5Gbps over a 100 m Cat 6A cable. With four USB Type-A ports built on the remote unit, the connection to multiple USB peripherals, from flash drives, keyboards, mice, and webcams to interactive whiteboards, is made easy. The support for bi-directional RS-232 pass-through facilitates integration into control systems, and apart from that, the Frame Synchronization (FSYNC) GPIO pass-through ports allow bi-directional commands to be sent when it comes to industrial camera implementations. The bi-directional 24V power over cable function eliminates the need for an additional power adapter when either of the local or remote unit receives power.

The UCE33100 supports plug-and-play operation to work flawlessly with all operating systems, assuring hassle-free installation with no extra driver or software required. Flexibility is further enhanced due to the extender’s compact, wall-mountable enclosure, which also helps save space.

Features:
• A two-piece extension kit that transmits USB signals over a Cat 6A cable
• Long distance USB 3.2 data transmission at up to 5Gbps across 100m
• Backward compatible with USB 2.0 / 1.1 specifications
• 4x USB Type-A ports built on the remote unit for connection to multiple USB peripherals (flash drives, keyboards, mice, webcams, interactive whiteboards, and any other USB-based devices)
• Supports bi-directional RS-232 pass-through for integration into control systems
• Supports bi-directional Frame Synchronization (FSYNC) GPIO pass-through for industrial camera applications
• Bi-directional 24V power over cable eliminates the need for an additional power adapter when either of the local or remote unit receives power
• Plug-and-play with no driver / software required to work with all operating systems
• Compact, wall-mountable enclosure elevates installation flexibility and helps save space

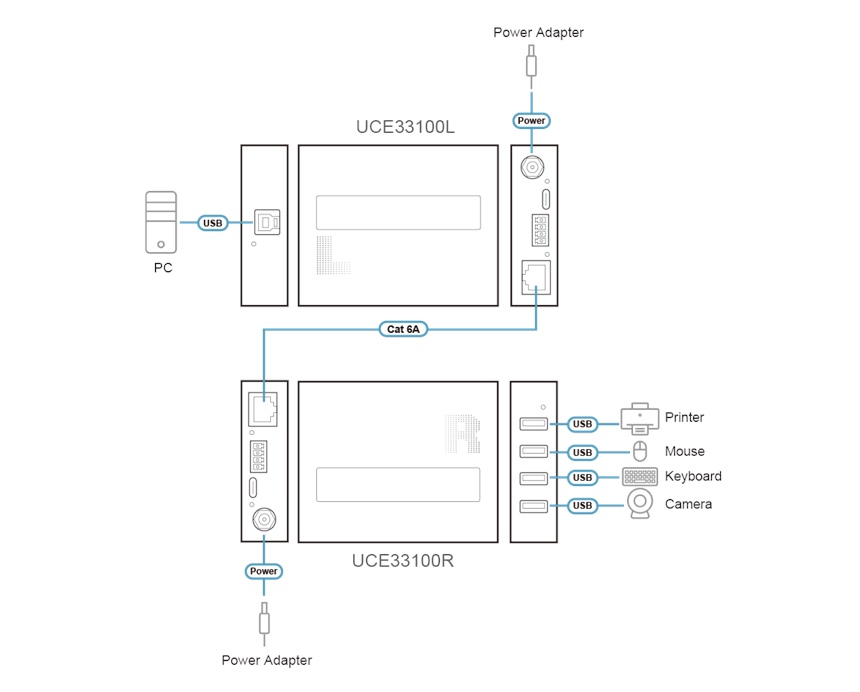

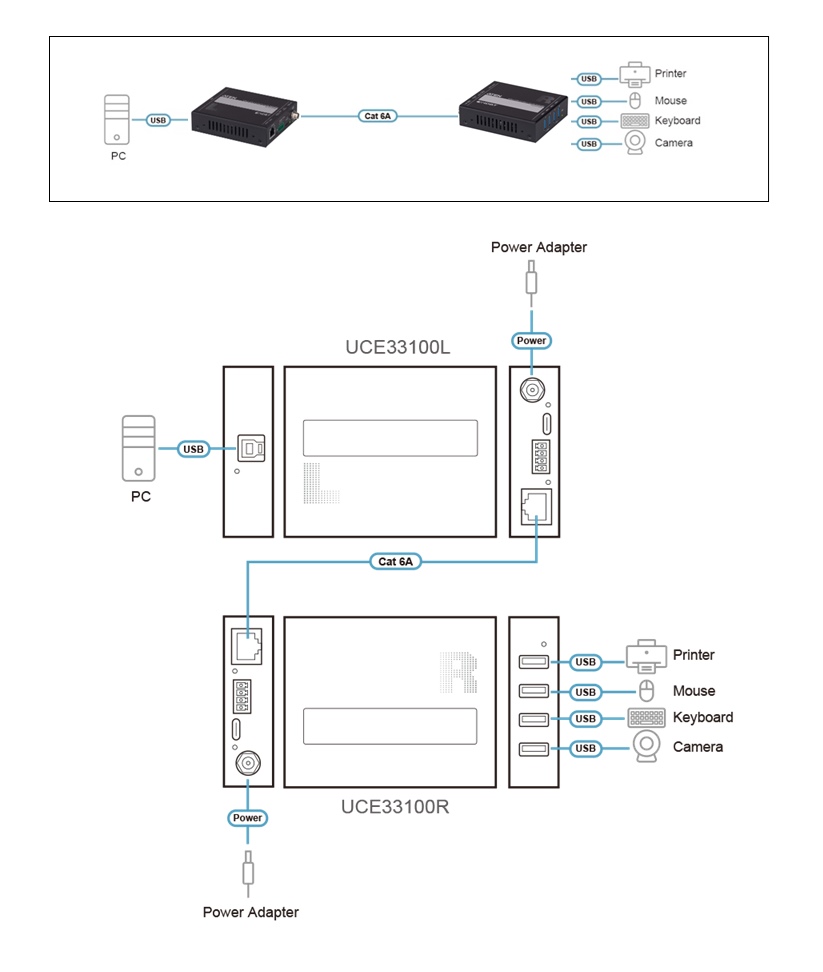

UCE33100 Diagram

Specification:
Package Contents:

1x UCE33100 Local and Remote Units
1x USB 3.2 Gen 1 Type-A to USB Type-B cable
2x 4-pin terminal blocks
4x mounting kits
1x power adapter
1x user instructions

Local Unit
Upstream Port 1 x USB Type B Female
Downstream Port 1 x RJ45 Female, HDBT-USB3
1 x USB Type C Female (Firmware Upgrade)
1 x 3-pin Terminal Plug (RS-232)
1 x 1-pin Terminal Plug (FSYNC)

Note: The USB-C port is for firmware upgrade only. Please do not connect any other devices during regular use.
Power 1 x DC Jack
Remote Unit
Upstream Port 1 x RJ45 Female, HDBT-USB3
Downstream Port 4 x USB Type A Female
1 x USB Type C Female (Firmware Upgrade)
1 x 3-pin Terminal Plug (RS-232)
1 x 1-pin Terminal Plug (FSYNC)

Note: The USB-C port is for firmware upgrade only. Please do not connect any other devices during regular use.
Power 1 x DC Jack
USB Specification USB3.2 Gen1
Cable Type Cat 6A Ethernet Cable
Note: We recommend using cables of HDBaseT 3.0 Certified Cat 6A U/FTP cable for a better transmission.
Signal Range 100m
LEDs
Status 3 x LED
Power Consumption DC24V:1.92WBTU/h
DC24V:2.64WBTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0°C to 40°C
Storage Temperature -20°C to 60°C
Humidity 20–90% RH, Non-condensing
Physical Properties
Weight 0.26 kg ( 0.57 lb )
Housing Metal Enclosure
Dimensions (L x W x H) 10.75 x 8.50 x 2.55 cm
(4.23 x 3.35 x 1 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
