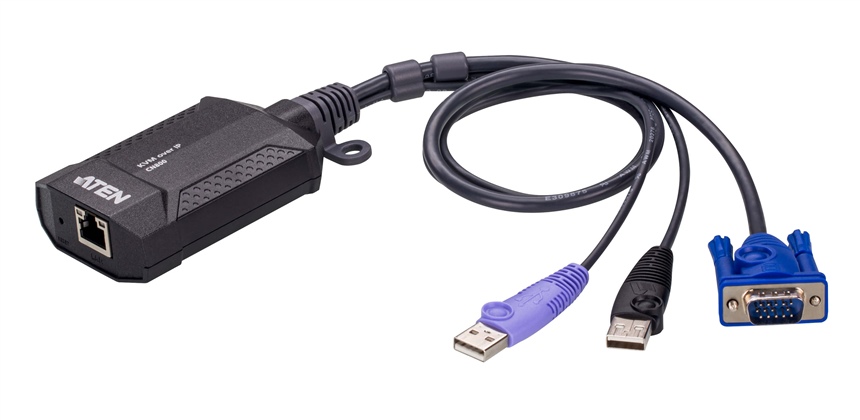

CN800 ATEN USB VGA KVM over IP Mini (IP KVM) *NEW*

CN800 0U IP KVM Switch

Description:
The ATEN CN800 offers superior video quality with HD resolutions up to 1920 x 1200 @ 60 Hz, facilitating easier KVM access. The CN800 USB VGA KVM over IP Mini provides "over-IP" access control for conventional KVM switches lacking built-in over-IP functionality. It enables system operators to monitor and access computers remotely using Windows and Java-based application programs. The CN800 connects to an intranet, either LAN or WAN simply by using an industry-standard Cat 5e/6 cable and to a target computer or server. WinClient and JavaClient are available for remote access, enabling IP connection and login from anywhere over the internet.

The ATEN CN800 uses the standard TCP/IP protocols for communication. It allows the connected server or computer to be accessed from any computer over the internet – whether that computer is located down the hall, in other areas of the country, or branch offices in other parts of the world. The CN800 provides a fast, reliable, and cost-effective way to remotely access and manage widely distributed multiple computer installations.

Features:
Hardware

o Provides over-IP capability to KVM switches that do not have built in over-IP functionality
o Supports multi-platform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
o Virtual Media Support
o High video resolution – up to 1920 x 1200 @ 60 Hz with 24 bit color depth for remote sessions
o Enhanced FPS (frames per second) throughput for crisp responsive video display
o Bus-powered – no external power adapter required

Management

o Up to 64 user accounts
o Up to 32 users concurrent logins
o End session feature – administrators can terminate running sessions
o Event logging and Windows-based Log Server support
o Supports instant notification of critical system events via email, SNMP trap, and Syslog
o Remote firmware upgradable
o Multi-user Mode allows multiple users to gain access to a server simultaneously
o Integration with ATEN CC2000 Centralized Management Software
o Integration with ATEN CCVSR Video Session Recording Software
o DDNS (Dynamic Domain Name System)
o Enable / disable browser operation
o IPv6 capable

Easy-to-Use Interface

o Browser-based and AP GUIs offer a unified multi-language interface to minimize user training time and increase productivity
o Multi-platform client support (Windows, Mac OS X, Linux, Sun)
o Multi-browser supports (Chrome, Firefox, Safari, Opera)
o Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required
o Full-screen or sizable and scalable Virtual Remote Desktop

Advanced Security

o External authentication supports: RADIUS, LDAP, LDAPS, and MS Active Directory
o TLS 1.2 encryption to protect password when users log in
o Flexible design allows users to choose any combination of encryption algorithms (e.g. 256-bit AES) or systemgenerated random selection for independent keyboard / mouse, video, and virtual media data encryption
o Supports for IP / MAC Filter
o Supports password protection
o Private CA

Virtual Media

o Virtual media enables file applications, OS patching, software installation and diagnostic testing
o Works with USB enabled servers in operating system and BIOS level
o Supports USB 2.0 DVD / CD drives, USB mass storage devices, PC hard drives and ISO images
o Convenient to use without virtual media cable

Virtual Remote Desktop

o Video qualiy and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
o Full screen video display or scalable video display
o Message Board for communication among remote users
o On-screen keyboard with multi-language support
o Mouse Dynasync
o Exit Macros support
o BIOS-level access

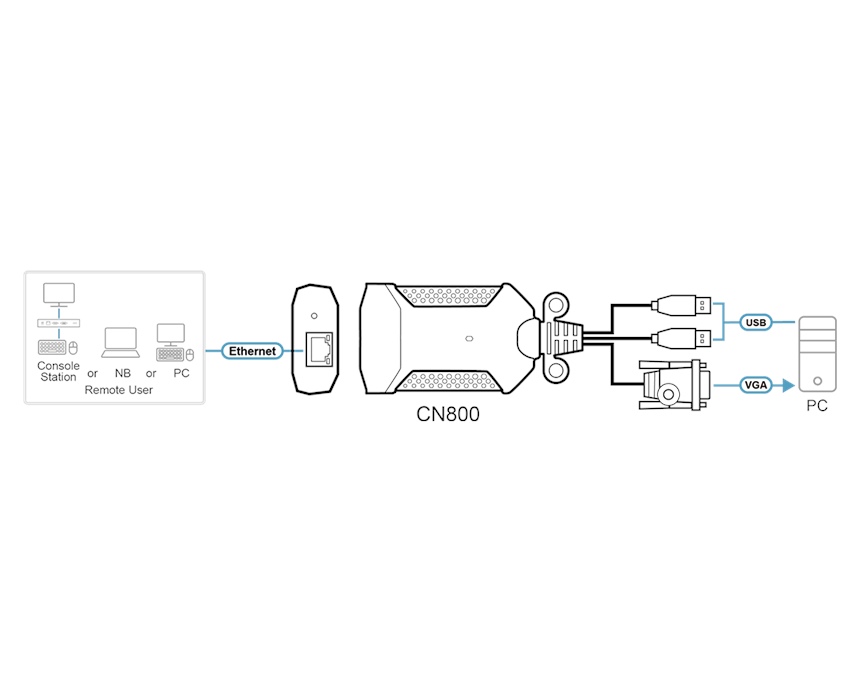

CN800 Diagram

Specification:
Package Contents

1x CN800 USB VGA KVM over IP Mini
1x user instructions

Connectors

KVM (Computer) Ports 1 x USB Type A Male (Purple)
1 x USB Type A Male (Black)
1 x VGA Male (Blue)
LAN Ports 1 x RJ-45 Female
Switches
Reset 1 x Semi-recessed Pushbutton
LEDs
Power 1 (Green)
Link 1 x Link (Orange / Green)
1 x Active (Green)
Emulation
Keyboard / Mouse USB
Video 1920 x 1200
Power Consumption DC5V:3.47W:16BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

Operating Temperature 0 - 50°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-condensing

Physical Properties

Housing Plastic
Weight 0.17 kg ( 0.37 lb )
Dimensions (L x W x H) 9.32 x 5.66 x 2.44 cm
(3.67 x 2.23 x 0.96 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
