P2P-KDR302 - SmartAVI - Point to Point Dual-Head DisplayPort CAT5 & Fiber Receiver with USB 2.0, Audio, and RS233 (P2PKVM Series)

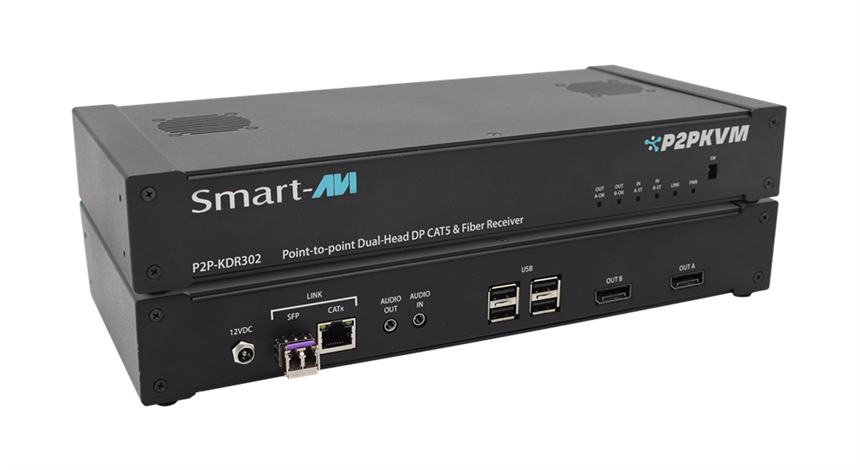

P2P-KDR302 - Dual Head DisplayPort CAT5 & Fiber Receiver

Description:
Point-to-point Dual-Head DP CAT5 & Fiber Receiver with USB 2.0, Audio and RS232 Extend, control, and manage your DP-based workstation over IP with the P2P-KDR302. Supporting flexible Direct, Matrix, and SaviGate modes, the P2P-KDR302 adapts to your installation needs — from simple point-to-point extensions to full multi-user managed environments — over CATx or Fiber.

Features:
• Supports DP Video Up To 4k @ 30hz Or 1080p @ 60hz
• Transparent Usb 2.0 Extension For Peripherals
• Analog Audio And Rs-232 Passthrough
• Selectable Direct, Matrix, And Savigate Modes Via Web Interface
• Savigate Gateway Support For Centralized Management (Sold Separately)
• Up To 100m Over Catx / 10km Over Fiber
• Ultra-Low Latency Jpeg2000 Compression
• Plug-And-Play Installation
• Edid Learning And Management

P2P-KDR302 Diagram

Specification:
Video (2) DP (female)
Max Resolution 1920 x 1080 @ 60 Hz
USB (4) USB Type A
Audio (2) Stereo 3.5 mm (female)
RS-232 DB9 (female)
Transmission RJ45 and/or SFP Fiber
Control LEDs
Power 5V DC, 2A
Dimensions 8.5” W x 4” L x 1.8” H
