H12C13-16A-Z - Austin Hughes - Z Series 1-Phase 12 port PDU (i2100), Dual IP, Strip Monitoring, Circuit Monitoring 16A PDU with 12x C13

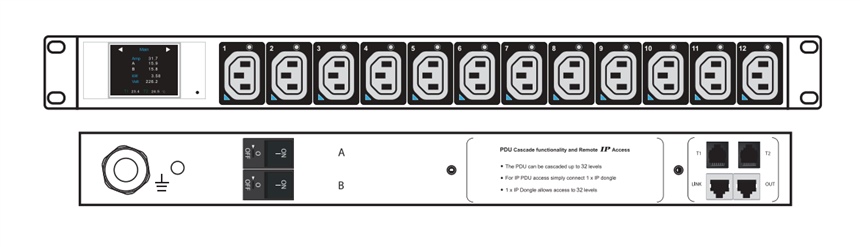

H12C13-16A-Z - 1U 12 port (C13)

Description:
Single Phase Rack Power Distribution Units help data center IT managers meet their rapidly escalating power requirements. Offered in a variety of sizes and configurations, InfraPower 1 Phase PDUs can be tailored to specific voltage, current, and connection needs, providing flexibility to address diverse power distribution requirements within the data center.

Z series IP PDUs are embedded with dual Gigabit ethernet LAN IP for redundant network access via IP, whilst M series Serial PDUs. Both Z & M series PDUs are featuring the newly designed smart meters and patented slide-lock IEC C13 / C19 / Combo C13/C19 outlets.

Monitored & Switched iPDU models are available to provide comprehensive remote monitoring, and on/off outlet switching functionality from anywhere in the world.

Features:
Z-2100 ( Z )

Embedded Dual IP
Strip Monitoring
Circuit Monitoring

Features:

REMOTE ACCESS - High Availability

Z IP PDU model is embedded dual Gigabit ethernet LAN IP for redundant network access via IP and hence ensuring 100% iPDU uptime reporting. Enterprise-level IP authentication support e.g., Active Directory (AD), LDAPv3 / LADPS, RADIUS or local credential database.

Secure Auto Lock

Patented IEC C13 & C19 outlets with slide lock mechanism design by Austin Hughes. Slide-lock C13 & C19 outlets connectable & lockable to C14 & C20 plugs respectively using generic IEC cables.

Combo IEC

Patented hybrid of IEC C13 & C19 outlet design by Austin Hughes. Slide-lock combo C13 / C19 outlet connectable & lockable to C14 / C20 plugs using generic IEC cables.

Slim profile 0U chassis design

For efficient rack mounting, InfraPower vertical PDU steel casing is designed with a slim profile starting from 56mm width and 55/68mm depth for a single IEC row.

Cost Saving Efficiency

InfraPower intelligent PDUs provide daisy chain functionality. With the 1st level Z PDU with embedded IP, up to 32 daisy chain levels can be achieved. Z and W series 1-phase/ 3-phase PDUs can be inter-cascaded in a single daisy chain, up to 32 PDUs can be accessed via one single IP.

Precise Intelligence

Z IP meter provide real-time local & remote power management. The +/- 0.5% accuracy of the InfraPower PDU meter is vital for billing accuracy, energy efficiency,capacity planning and performance monitoring.

Quality PDUs in Short Lead Time

Austin Hughes designs highly reliable Single Phase PDUs using an efficient production, assembly and inventory process. Every InfraPower Rack PDU unit is 100% tested before shipment. All these efforts allow us to deliver quality PDUs to customers in the shortest lead time.

Diversified & Customizable

3-Phase 208V, 400V, 415V and more Volt inputs; Apart from the standard configurations, custom configuration available upon request

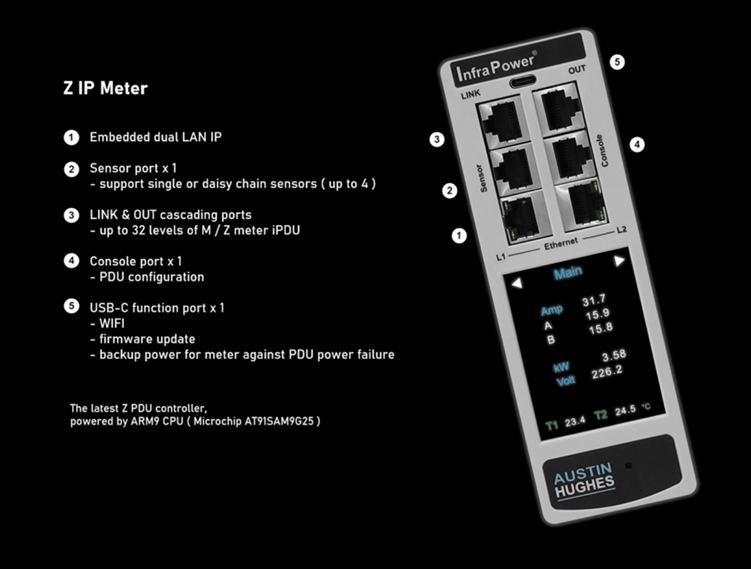

New Generation Z IP & M Serial Meters

Austin Hughes Z Series Controller

Specification:
See Spec Sheet.

Click here for further information
