NC14010-B452-UK Fujitsu FD-1100MT Range 17” TFT Console Drawer Plain Drawer

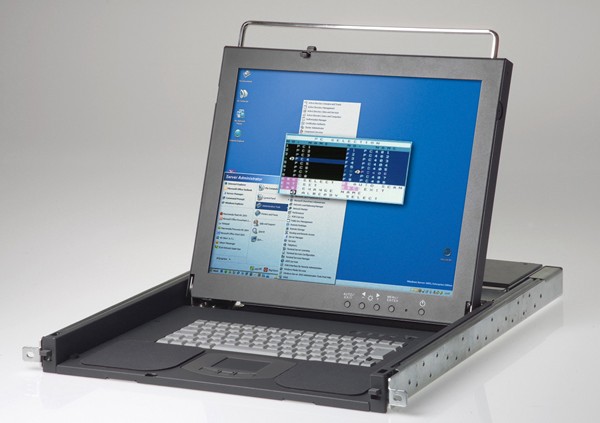

Fujitsu FD1100 Series 17 Drawer Front View

Description:
** DISCONTINUED AND REPLACED BY THE FD-5200 RANGE.
Call us for details


Fujitsu SERVIS FD-1100 Series – SXGA High resolution TFT LCD, keyboard and touch pad for simple local operation.

Fujitsu's latest addition to its Console Drawer range (FD-1100MT), delivers further improved visibility and operability with a 17-inch TFT LCD (1280 x 1024), membrane switch keyboard, 3 button touch pad and inherits the operability and space saving compactness of the popular FD-1000 series (15" console drawer) for rack mounting applications.

Multi-platform support for Sun/IA PS/2 or USB support allowing control of IA SUN Blade/Fire series Servers. (Cable configuration only via the SERVISCableSystem) Built in On Screen Display (OSD) allows Server naming and selection (When used with the optional KVM products). Unit collapses to only 43mm high for 1U implementations, installation and configuration made easy with side rails and a short pull design with front opening screen for added protection from accidental damage.

Adaptable to any platform computer via the required output cable
See compatible parts:

Also requires the sliding guide rails
See compatible parts:

Features:
· 1-U 17” LCD TFT
· Multi-Platform support for PS/2, USB and Sun.
· Multi-Language Keyboard variations
· 1280 x 1024 Resolution
· Multi-Processor (Integrated KVM Switch Version)
· Integrated 8/16 Multi-Platform KVM Option
· Laptop style Keyboard with 3 button touch-screen mouse
· OSD & Hot Key
· Auto-scan
· Separate/Composite sync support

Fujitsu STD Rack console setup

Specification:
LCD SXGA TFT color LCD

Size 17 inch

Resolution 640 x 480800 x 6001024 x 7681280 x 1024 (VESA)1152 x 900, 1280 x 1024 (Sun Composite)

Active Area 304.5 x 228.4 mm

Pixel Pitch 0.264 x 0.264 mm

Compatibility VESA DPMS and DDC 2B Sun

Contrast Ratio 450 (typ.), 350cd/mē (min.)

Viewing Angle Left 75, Right 75, Upper 75, Lower 60, Bottom 60 deg

Scan Frequencies (H/V) 31.5 ~ 80 KHz / 56 ~ 75 Hz





Panel colour 16.7 million display colours

Language Selection English, German, Italian, French, Spanish

Life 50,000 hrs (min) for backlight luminosity to halve for continuous lighting @ 25 deg

Luminance 250 (typ.), 200 (min.) CD/m2

MTBF 28,000 hrs

Certification CE, CB, UL, TUV, FCC Class A, VCCI Class A

RoHS Compliant

Weight 14 kg

Storage Temperature 0 ~ 50 deg C

Operating Temperature 5 ~ 35 deg C

Dimensions (H x W x D) 42 x 486 x 644 (Slide Rail Closed)42 x 486 x 1086 (Extended) mm
