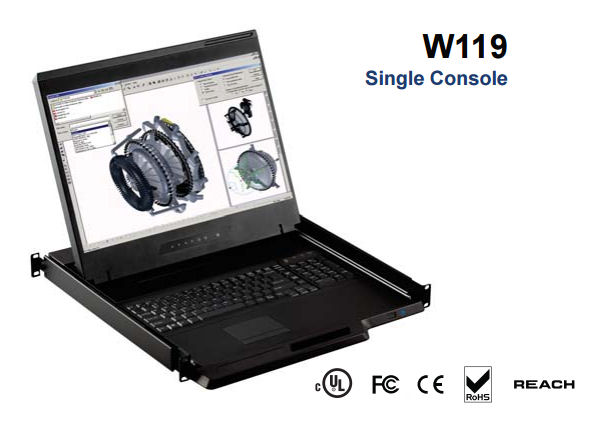

AH-W119E_EU Austin Hughes W119, 1U 19″ widescreen LED-backlit LCD Console Drawer The CyberView W119 rack console features a 19″ Widescreen LED-backlit LCD capable of 1440 x 900 video.


Description:
W119, 1U 19″ widescreen LED-backlit LCD Console Drawer
The CyberView W119 rack console features a 19″ Widescreen LED-backlit LCD capable of 1440 x 900 video.

Console Port
Video input
VGA console 6ft cable : CB-6A
KB / MS
HDMI console 6ft cable : CX-6B
HDMI 1.4 + VGA
Drawer end : DB-15 + USB type A x 2
Server end : DB-15 + USB type A x 2
USB interface
Drawer end : HDMI + USB type A x 2
Server end : HDMI + USB type A x 2

Features:
1U 19" Widescreen LED-backlit LCD console drawer
1440 x 900 native resolution / 16.7M colors
HDMI + VGA ( speakers excluded ) + USB K/B & MS
104-key keyboard with either touchpad or trackball
Short depth design of 460mm respectively
One Man installation design
Enhanced aesthetics with molded front handle
2-year standard warranty ( upgradable up to 5 years

Specification:
SKU W119
Brand
CyberView

Categories
LCD Console Drawer, Rack Console Drawers, Rack KVM & Screen


Console Port
Video input
VGA console 6ft cable : CB-6A
KB / MS
HDMI console 6ft cable : CX-6B
HDMI 1.4 + VGA
Drawer end : DB-15 + USB type A x 2
Server end : DB-15 + USB type A x 2
USB interface
Drawer end : HDMI + USB type A x 2
Server end : HDMI + USB type A x 2










Form Factor
1U Rack Mount

Screen Size
19 Inch

Display Resolution
1440 x 900

Display Brightness
250 cd/mē

Mouse
Touchpad, Trackball

Features
Integrated KVM Switch Options,
Short Depth
MTBF
30,000 Hours


Dimensions:
Product
( W x D x H )
Single console 442 x 460 x 44 mm
17.4 x 18.1 x 1.73 inch
Packing
( W x D x H )
Single console /
Console w/ KVM
Net
weight
11.5 kg / 25.3 lb
590 x 808 x 140 mm
Single console
Console w/ KVM 12.5 kg / 28 lb
Gross
weight
Single console 16 kg / 35.2 lb
Console w/ KVM 18.1 kg / 39.8 lb
23.2 x 31.8 x 5.5 inch
Console w/ KVM 442 x 580 x 44 mm
17.4 x 22.8 x 1.73 inch
* All dimensions stated are subject to change if options are selected / integrated to base mod


Single console drawer as this unit
470 ~ 700 mm
18.5 ~ 27.6 inch









Compliance
CE, UKCA, FCC, REACH, RoHS3, WEEE
