VR610 - Aten - Room Booking System - infoPlayer - Displays room booking status in List View or Map View, fully customisable content *NEW*

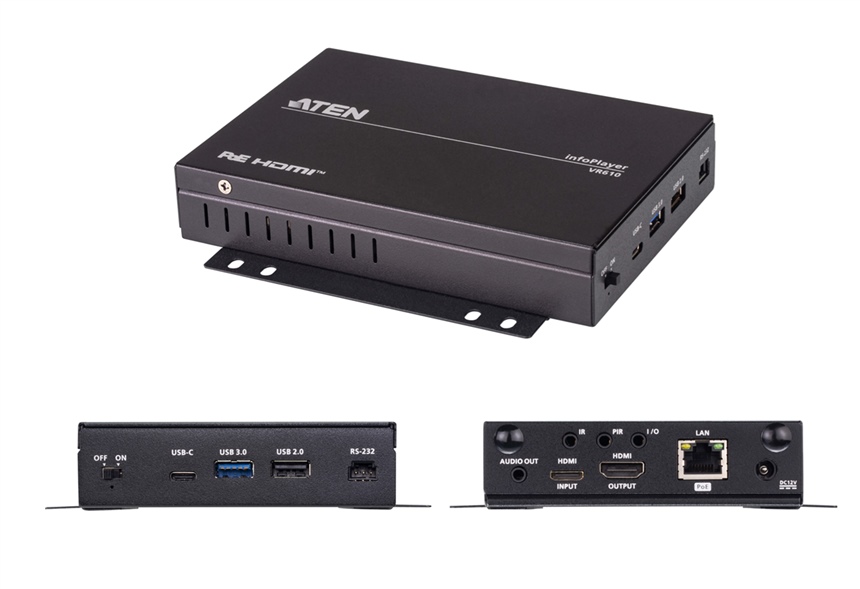

VR610 - Room Booking System

Description:
As a new addition to ATEN Room Booking System (RBS) portfolio, the VR610 RBS infoPlayer works with RBS Configurator the centralized configuration tool and VK430 the RBS panels to show real-time meeting room occupation status and the organization’s important news/announcements in an overview. Room availability can be presented in List View, which displays reservation details in an easy-to-read list format, or in Map View, which visualizes the location of each room to help users navigate through the spaces quickly.

With the VR610, enhancing brand identity is made effortlessly easy. Administrators can customize and manage the displayed content, including logos, text, images, videos, and screen layouts either through RBS Configurator or from afar via VR610’s HDMI-in signals. USB peripheral connection is enabled with the builtin USB-C and USB Type-A ports, providing touchscreen functionality for users to swipe and tap to check the status of each room in details and instantly make reservation.

The dual CPUs the VR610 contains have made it powerful enough to execute multiple tasks simultaneously, such as inter-communicating with the RBS Configurator and RBS Panels it connects to, displaying room booking status in real-time while distributing multimedia sources. The VR610 also supports Power over Ethernet (PoE), that is, the device receives power and data over an Ethernet cable, reducing cost and cabling. Plus, the detachable bracket the VR610 comes with guarantees flexible mounting to the back of a monitor. The HDMI out port supports up to 4K crystal-clear clarity to give a vivid, unambiguous view of the content.

With such a professional, yet user-friendly way of maximizing space efficiency, delivering information, and enhancing brand awareness, the VR610 RBS infoPlayer is ideal for entrances, elevator lobbies, or any other reception areas in all enterprise organizations, educational institutions, conference centers, and hospitality venues.

Features:
• Connects to VK430 RBS panels to show room availability and the organization’s news/announcements in an overview in real-time on a display connected to VR610 via HDMI
• Displays room booking status in two formats:
– List View: displays reservation details in an easy-to-read list
– Map View: visualizes the location of each room to help users navigate through the spaces easily
• Content displayed (logos, text, images, videos, web pages, and screen layouts) customizable via RBS Configurator or remotely via VR610’s HDMI-in signals
• Built-in USB-C and USB Type-A ports support touchscreen functionality – allows reservation status checking and instant room booking on the screen
• Powerful dual-CPU – performs multiple tasks simultaneously, including inter-communication with RBS Configurator and RBS Panels and displaying room booking status and multimedia sources
• 4K crystal-clear clarity – gives a vivid, unambiguous view of the content
• Power over Ethernet (PoE) – VR610 receives power and data via an Ethernet cable
• Detachable bracket guarantees flexible mounting to the back of a monitor

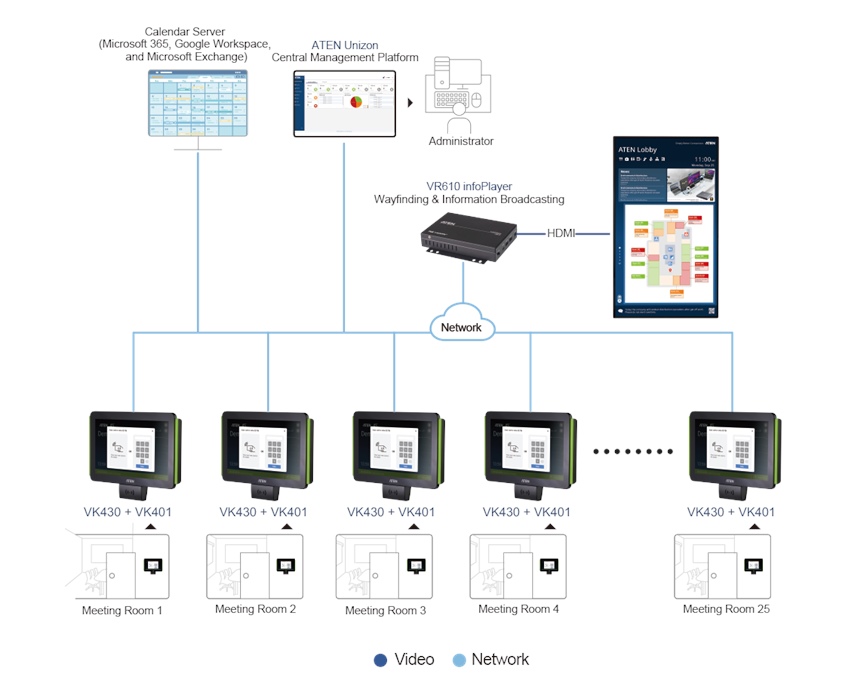

VR610 Diagram

Specification:
Processor Dual CPU
Memory
SDRAM 4GB
Flash 16GB
Interfaces
Video In 1 x Mini HDMI Female; Support up to 1080P@60Hz
Video Output 1 x Standard HDMI Female; Support up to 4K@60Hz
I/O 1 x Mini Stereo Jack Female (PIR sensor)
Ethernet 1 x RJ-45 Female, 10 / 100 / 1000 BaseT
USB 1 x USB 2.0 Type-A
1 x USB 3.0 Type-A
1 x USB Type-C
Power Inputs
Power over Ethernet (PoE) 802.3 at PoE+
Power Consumption DC12V:18.04W:61.5BTU/h
POE:20.3W:69.27BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0 – 40°C
Storage Temperature –20 – 60°C
Humidity 10 - 85% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.50 kg ( 1.1 lb )
Dimensions (L x W x H) 15.31 x 13.34 x 3.06 cm
(6.03 x 5.25 x 1.2 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Input Resolutions 640x480 @ 60/67/72/75 Hz 1080p 60 Hz
720x400 @ 70 Hz 480p 60 Hz (4:3) / (16:9)
800x600 @ 56/60/72/75 Hz 720p 60 Hz
1024x768 @ 60/70/75 Hz 1080i 60 Hz
1280x800 @ 60 Hz 640x480 @ 60Hz (4:3)
1280x1024 @ 60/75 Hz 576p 50 Hz (4:3)/(16:9)
1400x1050 @ 60 Hz 720p 50 Hz
1440x900 @ 60 Hz 1080i 50 Hz
1600x1200 @ 60 Hz 1080p 24/25/30/50 Hz
1680x1050 @ 60 Hz 3840x2160p 24/25/30/50/60 Hz
1920x1080 @ 60/120/240 Hz 1920x1080 @ 144 Hz
1920x1200 @ 60 Hz/60 Hz (Reduced Blanking) 2560x1440 @ 144 Hz
