UTP-FIBER1G-USB - Raritan - UTP-FIBER1G-USB: RJ-45 to Dual LC Fiber converter, 1000BaseT, USB powered Fiber Media converter, Raritan Fiber Converter (UTP Fibre Converter)

UTP-FIBER1G-USB

Description:
Compact: Ethernet to Fibre Media converter USB Powered

Legrand’s UTP-FIBER1G-USB fiber-to-Ethernet media converter is specifically designed for electrical power substations (IEC 61000-4-5). It provides a high level of interference immunity and extended transmission range (up to 10km) in industrial applications by converting the 1000Mbps Ethernet interface to fiber optics (1000Mbps according to 1000Base-X standard).

The small, plug-and-play converter dongle with LC duplex connector driven by USB 3.0 / USB2.0 provides flexibility to upgrade ETHERNET to FIBER OPTICAL in places with no industrial power supply or power over ethernet (PoE) are present. Its RJ45 port (male type) offers an auto crossing function, which means it is not necessary to distinguish between 1:1 and crossover cables.

Applications:

- Connectivity for long-distance and interference immunity with high security
- Control Center, Server Room, Office, Surveillance, Smart Building, Factory, Signaling System, Digital Signage, and Car Parking System
- Government, Telecommunication, Media, Medical, Security, Education, and Enterprise

Features:
• Plug and Play, easy installation without installing a driver
• Compact, lightweight designed to replace standalone media converters and Ethernet cables
• Flexible upgrade your Ethernet connectivity to secure fiber network connections
• High performance with EMI protection
• Long-distance connectivity up to 10km on single-mode fiber connection and 800m for multi-mode.

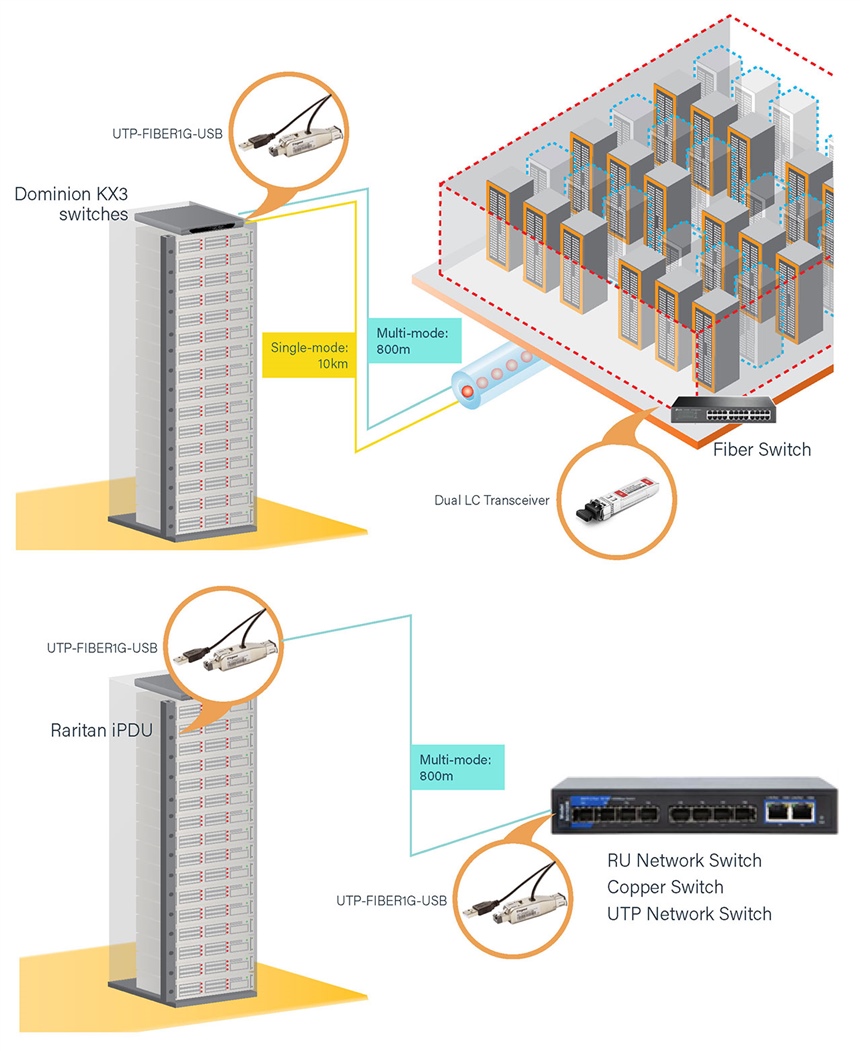

Connection Diagram

Specification:
General Specifications

Function Fiber Converter dongle
RJ45 port 1000 Base-Tx Auto negotiation
(IEEE 802.3u)
Fiber Port 1000 Base-X Full-duplex
(IEEE 802.3u)
Properties of optic port
Total number of FO ports 1
Connector type LC
Fiber Mode Duplex Fiber
Link Distance (Max) Up to 10Km for Single-mode fiber
Up to 800m for Multi-mode fiber
Data rate 1.25Gbps
Wavelength 1310nm
Optical Output Power Range -1 ~ -5 dBm
Optical Receive Sensitivity -21 ~ -3 dBm
Properties of RJ45 port
Total number of RJ45
Ethernet interfaces 1
Connection type RJ45 male
Data rate 1000Mbps
MDI/MDIx switchover Auto MDI/MDIX

SPECIFICATIONS

Environmental Spec.

Operating temperature 0˚C~55˚C
Operating Humidity (Max) 5%~95%
Degree of protection IP20
Power Requirements
Connector type USB 3.0 / USB 2.0 Type A
Power Consumption
typical 2.1 W
maximum 2.5 W

Physical Characteristics

Housing Metal
Dimension 82.39(L)*20(W)*17.56(H) mm
Weight 50g

Standards and Certifications

Shock and Vibration CNS 10033
Certifications CE/FCC/UKCA/VCCI
Green product RoHS and REACH
