SDMN-4S-P - iPGARD - 4-Port, dual-link DVI-I KVM switch, NIAP PP 3.0, Secure MultiViewer, DVI Video, w/audio, CAC, 4K support & preview screen (SmartAVI)

SDMN-4S-P - NIAP 3.0 Secure Multiviewer

Description:
4-Port single-head DP Secure KVM w/ audio, CAC and preview screen. Includes: [SDMN-4S-P, PS12V3A]

The SDMN-4S-P allows users to control KVM (Keyboard, Video and Mouse) operation on up to four computers with DVI, HDMI or VGA displays. It features mechanical, electrical and optical signal isolation to prevent hacking and data leakage in environments where security is paramount.

With the SDMN-4S-P, all data relays are controlled by inverted signals, shielding connections from outside intrusion by forcing them each to work one at a time. Each port uses its own isolated data channel and each unit features non-reprogrammable ROM to better protect the switch’s functions. Better yet, the SDMN-4S-P offers the highest security when accessing classified and public networks over the internet through these isolated connections. By isolating connections between networks, the SDMN-4S-P ensures no data is leaked between secure ports and the outside world.

The SDMN-4S-P has clearly marked front-panel buttons for controlling the device, so securely switching between sources is always simple. For high-grade secure switching made easy, look no further than the SDMN-4S-P.

Features:
• 4-port secure DVI-I KVM switch with CAC port
• Multiview mode: preview all 4 computers simultaneously
• Supports up to 4K UHD (3840×2160 @30Hz)
• USB keyboard/mouse emulation + audio switching
• Strong port isolation to prevent data leakage
• Secure EDID emulation and non-reprogrammable ROM
• NIAP PP 3.0 certified, with anti-tamper protection
• External power supply, RoHS/CE/UL approved

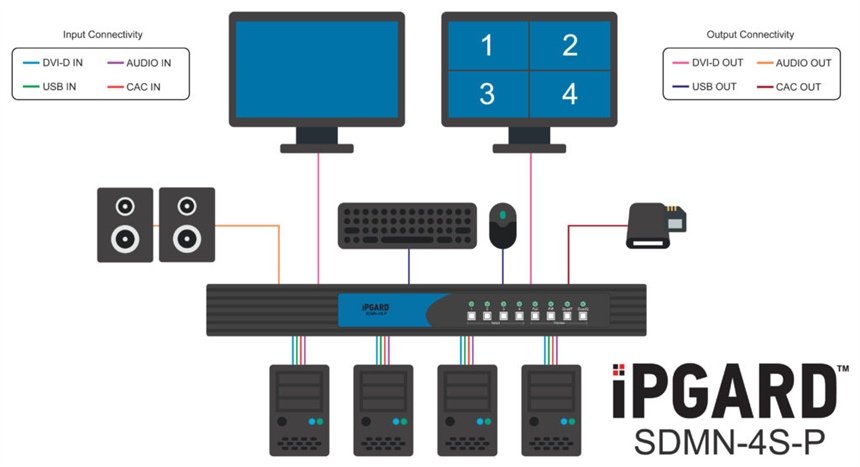

Diagram SDMN-4S-P

Specification:
VIDEO
Format DVI-I Dual Link, DVI 1.0, DVI-D, XVGA
Input Interface (4) DVI-I 29-pin
Output Interface (2) DVI-I 29-pin
Resolution 2560 x 1600 @ 60Hz; 3840×2160 @ 30Hz
DDC 5 volts p-p (TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.

USB
Input Interface (8) USB Type-B
Output (2) USB 1.1 Type A for KM Devices
Emulation Keyboard & Mouse
CAC Configurable CAC

AUDIO
Audio Input (4) 3.5mm stereo audio
Audio Output (1) 3.5mm stereo audio
CONTROL
Front Panel Front panel SELECT buttons

OTHER
Power External 100-240 VAC/12VDC2A @ 24W
Dimensions 12.57” W x 1.76” H x 6.69” D
Weight 4.2 lbs
Approvals NIAPP PP 3.0, UL, CE, ROHS Compliant
Operating Temp. +32 to +104°F (0 to +40°C)
Storage Temp. -4 to 140°F (-20 to +60°C)
Humidity Up to 80% (No Condensation)
