Partner Manufacturers - Product Information

STC-100-S - iPGARD - Remote Secure KVM Controller, Touch Screen (SmartAVI) STC100

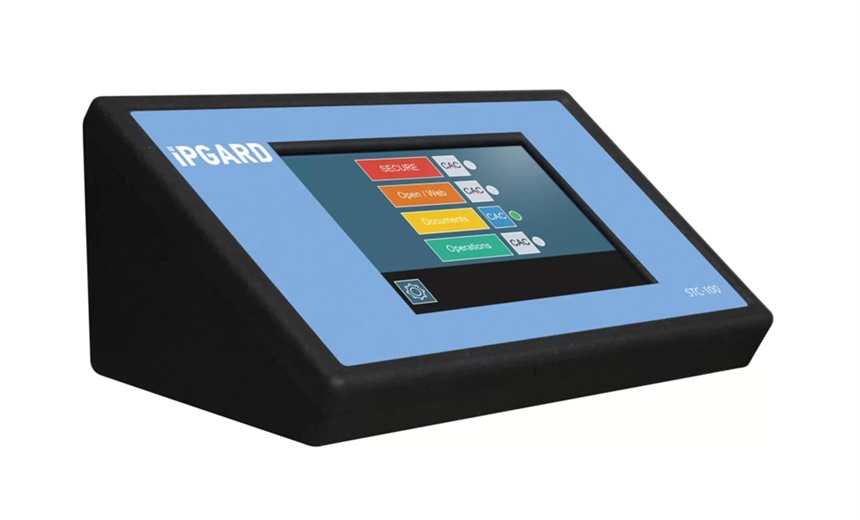

STC-100-S Remote Touchscreen Secure KVM Controller (STC100)

Description:
Secure Touch Screen KVM Controller. Includes: [STC-100 and MINIUSB5V2A]

Features:
• Compatible with any new switch from the existing Secure KVM and KM line
• Can connect to any switch, up to 16 channels, automatically detecting amount of ports
• Easily switch between channels and activate CAC up to 100ft away from the switch
• Support for Keyboard and Mouse extension to control the connected PCs up to 100ft away
• Can easily be integrated in the future to work seamlessly between Secure and Non-Secure KVM Switches
• Clearly show the active computer
• Color LCD Touch Screen display with backlight for clear and efficient switching
• Instant synchronization with Front panel indicators on the Switch
• RS-232 for settings customization future control of other devices
• Connect Directly to the Existing KM USB Slot on the KVM - No Need for Proprietary Connections

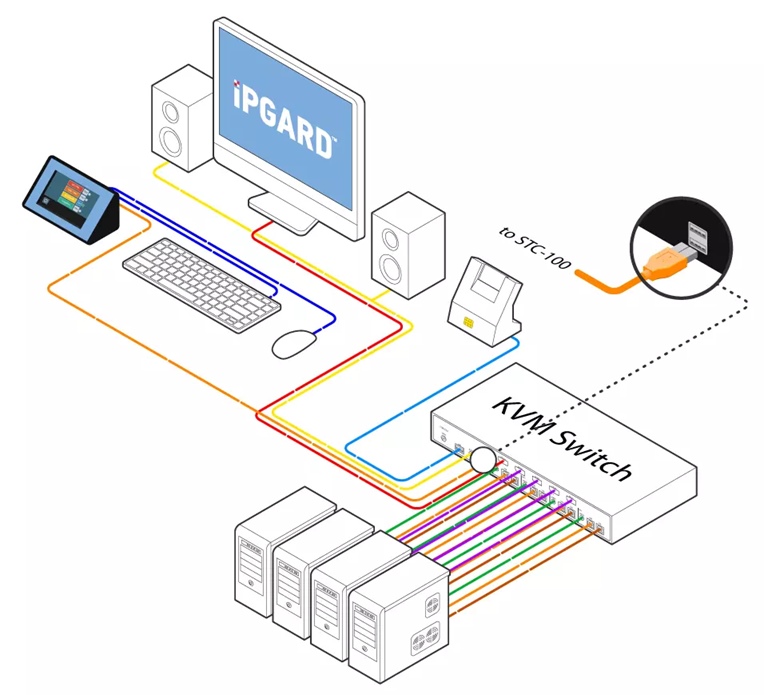

STC-100-S Diagram

Specification:
USB
Signal Type USB 1.1 and 1.0 Keyboard/Mouse only
USB Type B Inputs Keyboard-Mouse
User Console Output Interface (2) USB Type-A for keyboard and mouse connection only
CONTROL
RS-232 Baud rate: 115200; data bit: 8; stop bit: 1; no parity

OTHER
Power 5V DC, 2A power supply through Mini USB
Dimensions 5.25” L x 2.75” W x 2.50” H
Weight 0.4 lbs
Operating Temperature +32 to +104°F (0 to +40°C)
Storage Temperature -4 to 140°F (-20 to +60°C)
Humidity Up to 80% (no condensation)

Click here for further information
