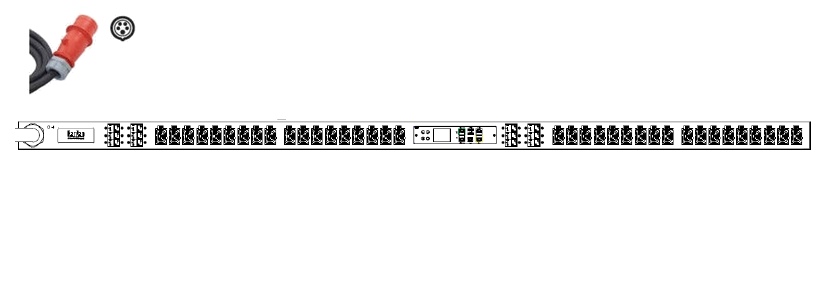

PX4-53A4I2-C8E7N2V2 Raritan 3PH, 400/415V, 63A PDU /or 48A (derated), 36 Outlets: 36 x Locking HDOT Cx, Input: IEC 60309 3P+N+E, 0U, 34.5/43.1kVA, 12 x 10kAIC breakers, Outlet Metered/Switched

Description:
380-415V, 3Φ, 60/63A, 31.6-34.5kVA
3PH, 400/415V, 63A or 48A (derated), 36 Outlets: 36 x Locking HDOT Cx, Input: IEC 60309 3P+N+E, 0U, 34.5/43.1kVA, 12 x 10kAIC breakers, Outlet Metered/Switched

Features:
With IX9 Controller
CONTROL PANEL
Controller Version iX9
Swappable/Replaceable Yes, hot-swappable
Onboard Display
Voltage, current, or active power (per line, or per receptacle
/outlet); Alarms; Configuration information (name, ratings,
IP/Networking information); Auto-flip orientation
SmartSensors
Yes, compatible sensors: Temperature, Humidity, Airflow,
Differential Air Pressure, Water/Leak, Dust/Particle,
Proximity/Motion, Vibration, and Sensor Hubs
SmartLock Yes, compatible sensors: Contact and Contact Closure

PANEL FEATURES
Control Buttons Navigate to the menu in the manual mode (Up, Down, Back,
or Switch between automatic and manual modes, OK)
Multi-Color LCD Shows information on the device, built-in components, and
connected peripheral devices
Reset Button Restarts the device's firmware without any loss of power to
outlets
Dual Networking Gig E
10/100/1000 Ethernet Ports
Supports up to 1000 Mbps; also supports extended
cascading
Dual (2) USB-A Ports
Supports USB-A wireless LAN adapters; iOS mobile devices;
cascading for sharing a network connection. Power rating
5V/500mA
USB-B Port Supports CLI and cascading for sharing a network
connection
PDU Link Port For power sharing, cascading, and current monitoring
Sensor Port RJ45 connector; Power/control sensor packages/actuators,
current monitoring; also supports Sensor Hubs



Energy Metering Voltage (V), Current (A), Active Power (kW), Real Power (kVA),
Energy (kWh), Power Factor
Metering Accuracy Class 0.5 meter (see page 3 for details)
Metering per Input Line Yes
Metering per Branch Circuit Breaker Yes
Metering per Output Receptacle Yes
Remote Outlet Switching Yes
Power Quality Monitoring
Voltage and Current Harmonic Distortion; Distortion Power
Factor; Voltage Dip and Voltage Swell; Neutral Current,
Current Inrush, Crest Factor
Outlet Power Distribution Alternating Branch
Replaceable Controller Yes, hot-swappable
Environmental Sensor Ready Yes

Networking
Gigabit (10/100/1000 BaseT) Ethernet port; Secondary,
redundant (10/100/1000 BaseT) Ethernet port;
Optional Wi-Fi (802.11a/b/g/n)
Remote Management HTTP(s); SSH (CLI); Telnet; RS-232 (Serial); SNMP version
v2/v3; SMTP; JSON-RPC API; MODBUS-TCP; Redfish API
Cascading Yes, Max 16 PDUs can be daisy chained using a USB connection
and 32 PDUs using Ethernet connection
Linking
Yes, a maximum of 8 PDUs can be linked using the PDU
Link Port; PDU 1 is defined as the Primary PDU and can link
up to 7 additional PDUs, called Link PDUs, totaling 8 PDUs

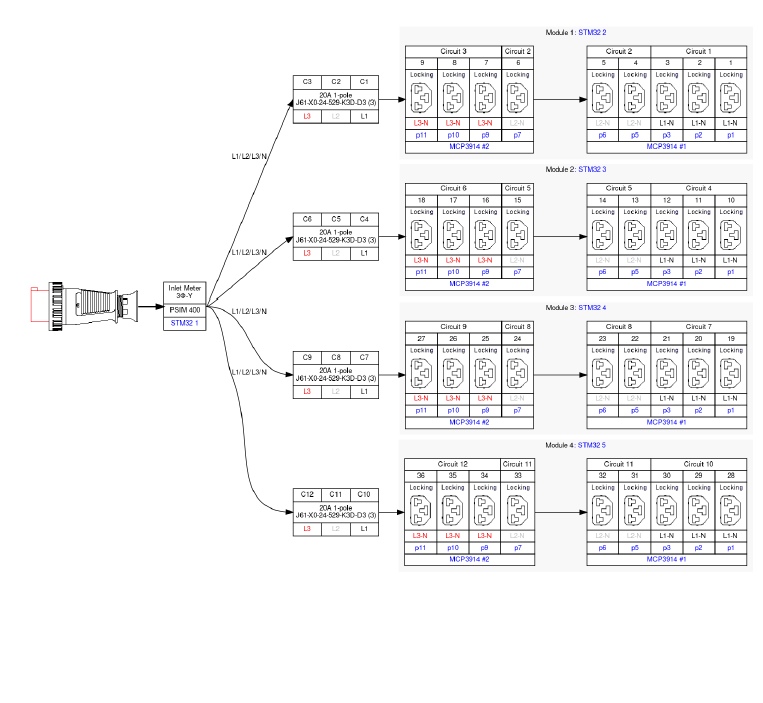

PX4-53A4I2-C8E7N2V2 WIRING

Specification:
PX4-53A4I2-C8E7N2V2 Raritan 3PH, 400/415V, 63A or 48A (derated), 36 Outlets: 36 x Locking HDOT Cx, Input: IEC 60309 3P+N+E, 0U, 34.5/43.1kVA, 12 x 10kAIC breakers, Outlet Metered/Switched


Technical Specifications
Model Number:
PX4-53A4I2-C8E7N2V2
380-415V, 3Φ, 60/63A, 31.6-34.5kVA


INPUT
Input Plug IEC 60309 3P+N+E 6h 60/63A (4P5W)
Cord Length 3 meters (9.84 feet) standard
Cord Entry Bottom-front feed
Number of Power Cords 1
Input Current, Maximum 60/63A
Input Current, Rating 48 (UL), 63A (International)
Input Voltage, Nominal 380/415V, 3 phase
Input Voltage, Rated 380 - 415V 3Φ
Input Frequency 50/60Hz
Power Capacity 31.6kVA at 380V, 34.5kVA at 415V


OUTPUT
Voltage, Nominal 220 - 240V
Voltage, Rated 220 - 240V
Receptacles (Output Connections) (36) Cx Locking, 16A
Outlet Indicators
Yes, R/G/B LEDs; Outlet Powered On/Off, Above/Below
Threshold, Outlet Service Mode - Outlet On/Off, Suspect
Outlet/Trip Forensics - Outlet Off, Circuit Breaker Trip/Fuse
Blown - Outlet On/Off, Boot Up Sequence
Outlet Locking Yes
SecureLock (P-lock) Support Yes
Overload Protection (12) J61-X0


PHYSICAL
Color Black powder coat (custom colors available)
Material of Construction Extruded Aluminum
Unit Dimensions (WxDxH) 2.8" x 3.1" x 80.5" ; 70mm x 80mm x 2044mm
Unit Weight 16.92 kg
Shipping Dimensions (WxDxH) 14.49" x 5.04" x 86.89" ; 368mm x 128mm x 2207mm
Shipping Weight 20.35 kg
Mounting Tool-less button mount

ENVIRONMENTAL
Operating Temperature 60°C
Operating Relative Humidity 5% to 95% (non-condensing)
Operating Elevation 0 to 3048m; 0 to 10,000ft
Storage Temperature -30 to 80°C/ -22 to 176°F
Storage Relative Humidity 0% to 95%
Storage Elevation 0 to 15,000m; 0 to 50,000ft

CONFORMANCE
Regulatory Approvals UL Listed and CE, Canada ICES-003, Part 15 Class A of the FCC rules,
RoHS compliant
Warranty 2-year manufacturer warranty

ACCURACY
Input Measurement Output Measurement
LCD & GUI Current ±0.2% at 0.01 A resolution ±0.2% at 0.01 A resolution
Voltage ±0.2% at 0.1 V resolution ±0.2% at 0.1 V resolution
Voltage, Neutral ±1% at 0.1 V resolution n/a
Current, Neutral ±0.5% at 1% FS resolution
(FS is PDU ampere rating) n/a
Active Power ±0.5% at 1 W resolution ±0.5% at 1 W resolution
Apparent Power ±0.5% at 1 VA resolution ±0.5% at 1 VA resolution
Reactive Power ±1% at 1 VA reactive resolution ±1% at 1 VA reactive resolution
Power Factor ±1% at 0.01 resolution ±1% at 0.01 resolution
Crest Factor ±1% at 0.1 resolution ±1% at 0.1 resolution
Active Energy ±0.5% at 0.1 kWh resolution ±0.5% at 0.1 kWh resolution
Apparent Energy ±0.5% at 0.1 kVAh resolution n/a
Reactive Energy ±1.0% at 0.1 kVAh resolution ±1.0% at 0.1 kVAh resolution
Voltage, Harmonic Distortion 1.0% 1.0%
Current, Harmonic Distortion 5.0% 5.0%


Branch Measurement
Current ±1% at 0.01 A resolution
