SA-DPN-4Q-P - iPGARD - 4-Port, DisplayPort QH Secure Pro Quad Screen, NIAP PP 4.0, Secure KVM Switch, DisplayPort KVM w/audio and CAC, 4K Video (SmartAVI)

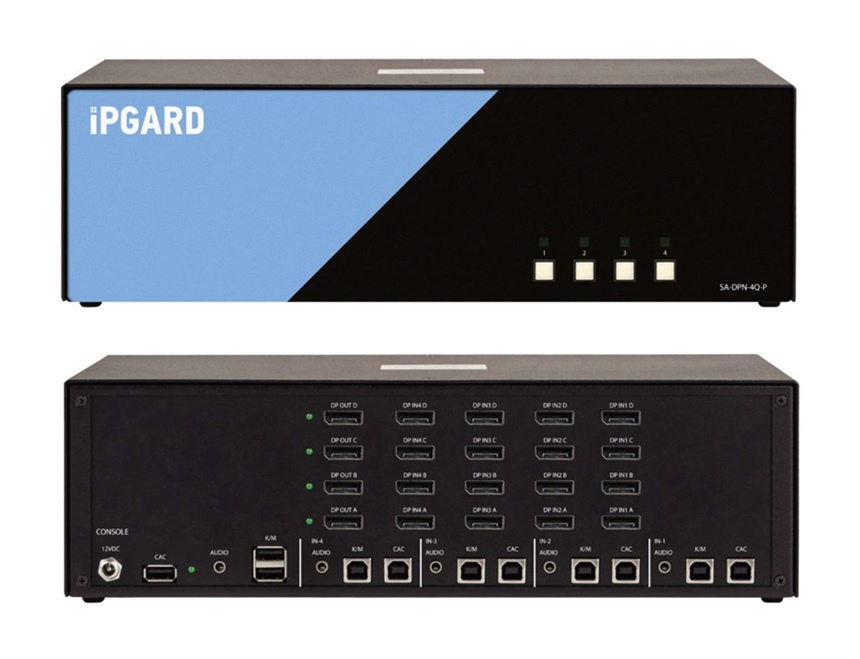

SA-DPN-4Q-P Quad Screen Secure KVM Switch

Description:
4-Port quad-head DP Secure KVM w/ audio and CAC. Includes: [SA-DPN-4Q-P, PS12V3A]

Features:
• Supports Windows, Mac and Linux OS
• Quad-head DisplayPort video interface
• 4K Ultra-HD resolution - supports up to 3840 x 2160 @ 60Hz
• Advanced configurable CAC port
• External power supply - Level VI efficiency
• Computer interface isolation while powered or unpowered
• Ensures all user data is completely isolated and no data is ever stored
• No external interfaces can be used, only keyboard, mouse and CAC devices accepted
• Secure channel switching with leak prevention, no hotkeys
• Front panel tactile buttons for secure channel switching and LED channel indicators
• Peripheral and authentication ports isolation for secure usage
• Tamper-evident label and anti-tampering technology
• No wireless devices connected
• Ensures only trusted admin gains access

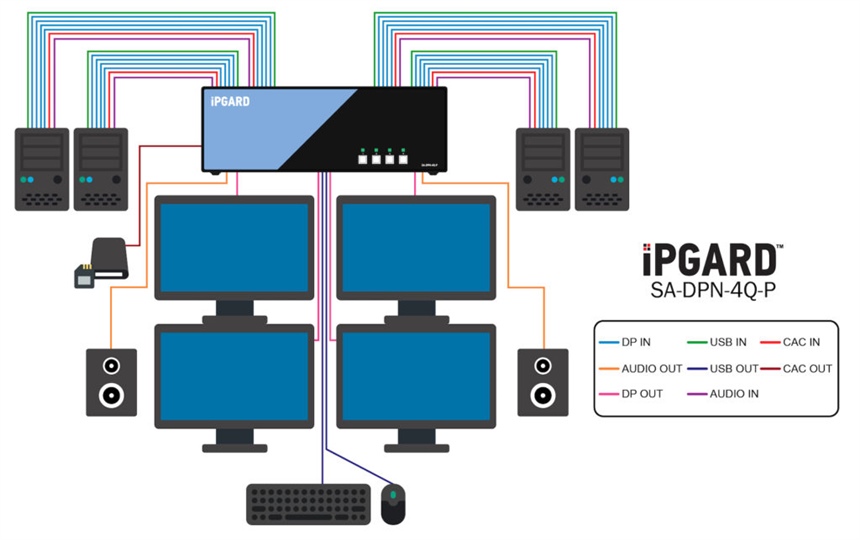

SA-DPN-4Q-P Diagram

Specification:
VIDEO
Format DisplayPort1.2a
Input Interface (16) DisplayPort
Output Interface (4) DisplayPort
Resolution Up to 4K (3840x2160 @ 60Hz)
DDC 5 volts p-p (TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.

USB
Input Interface (8) USB Type B
Output Interface (2) USB 1.1 Type A for KM Devices
Emulation USB 1.1 and USB 2.0 Compatible
CAC Configurable USB 2.0 Port

AUDIO
Audio Input (4) 3.5mm stereo audio
Audio Output (1) 3.5mm stereo audio

CONTROL
Front Panel Front panel SELECT buttons

OTHER
Power External 100-240 VAC/ 12VDC3A @ 24W
Dimensions 12.57” W x 4.9” H x 6.69” D
Weight 4.2 lbs
Approvals NIAP PP 4.0, UL, CE, ROHS Compliant, ICES-003
Operating Temp. +32 to +104°F (0 to +40°C)
Storage Temp. -4 to 140°F (-20 to +60°C)
Humidity Up to 80% (no condensation)
