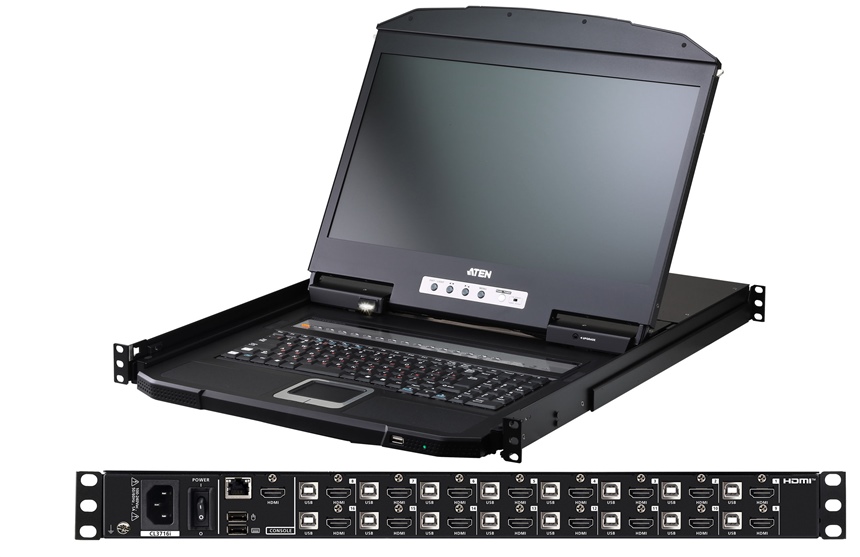

CL3716i Aten 1U Ultra Short Depth 18.5" 1-Local/Remote Shared Access 16-Port USB HDMI Single Rail WideScreen KVM Drawer Console FHD LCD KVM over IP Switch
CL3716I
Description:
A 1U short-depth Full HD LCD KVM over IP switch for secure local and remote server control in control rooms and data centers.
Compact 1U short-depth design with integrated 18.5" Full HD LCD
KVM over IP access for real-time remote management
Controls 16 computers from a single console
Flexible switching options via pushbuttons, hotkeys, and OSD enabling secure, centralized control
The ATEN CL3716iNW is a space-efficient 1U single-rail LCD KVM over IP switch designed for mission-critical environments such as control rooms and data centers. Integrating an 18.5" LED-backlit widescreen monitor, full keyboard, and touchpad into a short-depth sliding housing, it delivers reliable local and over IP access while maximizing valuable rack space.
Maximize Rack Space While Maintaining Full Local Control
Built into a compact 1U single-rail chassis with a short-depth design, the CL3716iNW fits perfectly in shallow racks and space-constrained installations. The all-in-one console design eliminates the need for external peripherals, while an integrated LED illumination light ensures clear visibility for accurate operation in low-light, 24/7 environments.
Centralized and Flexible Control of Multiple Systems
Supporting direct USB and HDMI connections to 16 computers, the CL3716iNW enables efficient centralized management from a single console. An external USB and HDMI console output allows simultaneous local and external access, providing greater operational flexibility for multi-operator or extended workspace scenarios. System control is intuitive via front-panel pushbuttons, hotkeys, or a multilingual on-screen display (OSD). Broadcast Mode enables commands to be sent to multiple computers simultaneously, while Auto Scan Mode provides continuous monitoring of selected systems.
Crystal-Clear Full HD for Precise Monitoring
Engineered for reliable performance, the CL3716iNW delivers crisp Full HD 1920 × 1080 @ 60 Hz video. This ensures clear and accurate visual output, helping operators monitor critical systems with confidence in mission-critical environments.In addition, the CL3716iNW features Panel Array Mode™ for simultaneous multi-server monitoring on a single screen, with each server displayed in an individual panel and customizable layouts for flexible viewing.
Simplified, Secure, and Efficient System Management
Three-level password protection safeguards against unauthorized access, a dedicated LAN port supports network-based firmware upgrades, and a front-panel hot-pluggable USB mouse port (HID-only) allows quick peripheral replacement to minimize downtime.
Features:
Space Utility Optimization
Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to enhance usability in dimly lit settings
Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
Short-depth design allows users to work with your rack-mounting equipment in narrow spaces
Console lock – enables the console drawer to remain securely locked away in position when not in use
Reliability and Operational Versatility
Superior video quality – up to 1920 x 1080 @ 60 Hz
External console port – enables management of connected computers from an external console (monitor, USB keyboard, and USB mouse)
Computer selection via pushbuttons, hotkeys, and multilingual on-screen display (OSD)
IP-based LCD KVM switch enabling shared local console access and remote access, allowing monitoring and control of multiple computers via a standard web browser over the network
Broadcast mode – allows users to send commands from the console to all computers to perform operations simultaneously
Three-level password security – only authorized users can view and control computers
Auto Scan mode – enables continuous monitoring of user-selected computers
Panel Array Mode™ enables simultaneous monitoring of multiple servers on a single screen, with each server’s video output displayed in an individual panel and configurable panel layouts for flexible viewing
Keyboard Language supports: English (UK), English (US), German (GER.), German (SWISS.), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Turkish and Traditional Chinese
Additional hot-pluggable USB mouse port on front panel that supports HID device for keyboard and mouse
Installation Flexibility
Standard rack mount kit included
Optional rack mount kits available including easy installation options*
No software required
Firmware upgradable via LAN port
Supports hot-plugging
Specification:
Function CL3716iNW
Computer Connections
Direct 16
Maximum 16
Port Selection OSD, Hotkey, Pushbutton

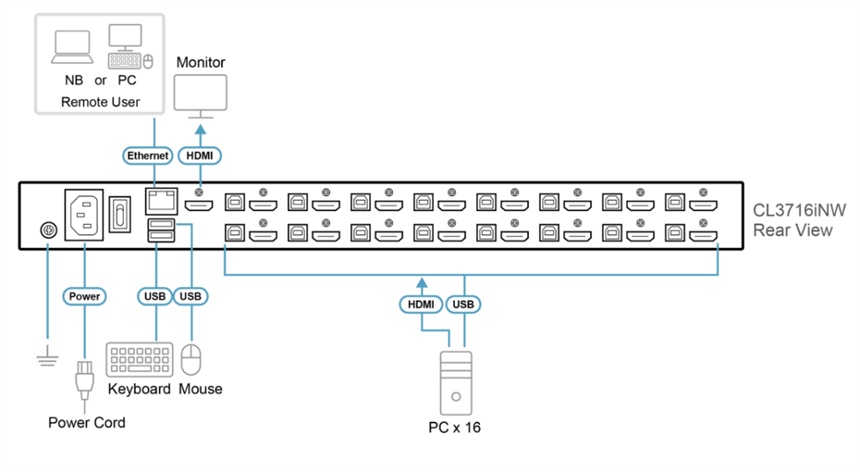

Connectors
KVM Ports 16 x HDMI Female
16 x USB Type B Female
Power 1 x IEC 60320/C14
External Mouse Port 1 x USB Type A Female (Front)
External Console Ports 1 x HDMI Female
2 x USB Type A Female
LAN Ports 1 x RJ-45 Female
Switches
Port Selection 16 x Pushbutton
Reset 1 x Semi-recessed Pushbutton
Power 1 x Rocker Switch
LCD Control 4 x Pushbutton
LCD Power 1 x LED Pushbutton
LEDs
Online 16 (Orange)
Selected 16 (Green)
Power 1 x KVM Console (Dark Green)
1 x LCD (Orange)
Lock 1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)
LED Illumination Light 1 x LED Illumination Light
Panel Spec
LCD Module 18.5" TFT-LCD
Resolution 1920 x 1080 @ 60 Hz
Response time 20 ms
Viewing Angle 178° (H), 178° (V)
Pixel Pitch 0.213 mm x 0.213 mm
Support Color 16.77M colors
Contrast Ratio 1000 : 1
Luminance 350 cd/m˛
Video
Remote 1920 x 1200 @60 Hz
Input Video Resolution up to 1920 × 1200 @ 60 Hz
Second console 1920 x 1200 @ 60 Hz
Scan Interval 1-255 seconds
Emulation
Keyboard / Mouse USB
Maximum Input Power Rating 100–240 VAC, 50/60 Hz, 1 A
Power Consumption AC110V:42.1W:204BTU/h
AC220V:41.7W:202BTU/h
Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0-40°C
Storage Temperature -20-60°C
Humidity 0 - 80% RH, Non-condensing
Physical Properties
Housing Metal + Plastic
Rail Type Single Rail
Weight 10.96 kg ( 24.14 lb )
Dimensions (L x W x H) 48.06 x 63.10 x 4.28 cm
(18.92 x 24.84 x 1.69 in.)
Body Dimensions(L x W x H) 44.92 x 58.4 x 4.28 cm
(17.69 x 22.99 x 1.69 in.)
Note Body Dimensions exclude I/O ports, handles, and mounting brackets.
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Package Contents
1 x CL3716iNW 1-Local/Remote Shared Access 16-Port USB HDMI Single Rail WideScreen LCD KVM over IP Switch with Standard Rack Mount Kit
2 x KVM cable sets (USB, HDMI, Audio; 1.8 m/6 ft)
1 x power cord
1 x user instructions
