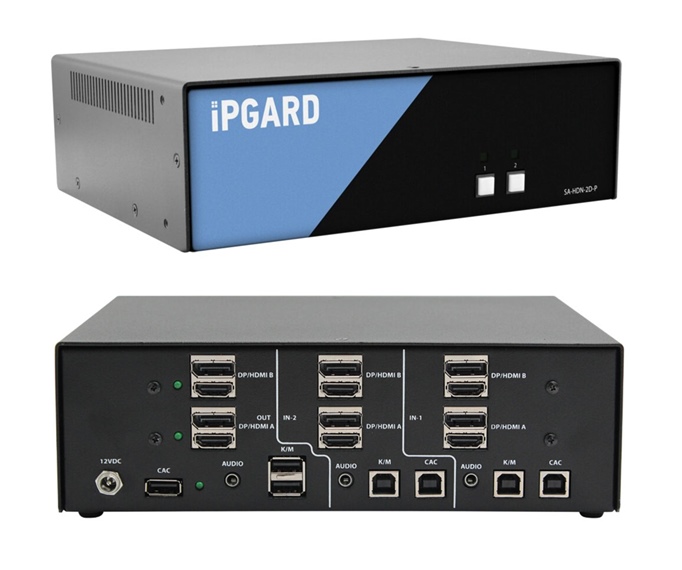

SA-HDN-2D-P - iPGARD - 2-Port, Dual Screen, NIAP PP 4.0, Secure KVM Switch, DisplayPort/HDMI KVM (w/audio) 4K Video SmartAVI (with CAC)

2-Port DH Secure DP/HDMI KVM w/audio and CAC

Description:
2-Port dual-head DP/HDMI Secure KVM w/ audio and CAC. Includes: [SA-HDN-2D-P, PS12V3A]

Features:
• Supports Windows, Mac and Linux OS
• Dual-head DP/HDMI video interface
• 4K Ultra-HD resolution - supports up to 3840 x 2160 @ 60Hz
• Advanced configurable CAC port
• External power supply - Level VI efficiency
• Computer interface isolation while powered or unpowered
• Ensures all user data is completely isolated and no data is ever stored
• No external interfaces can be used, only keyboard, mouse and CAC devices accepted
• The CAC port functions as a dedicated RCP (Remote Control Port)
• Secure channel switching with leak prevention, no hotkeys
• Front panel tactile buttons for secure channel switching and LED channel indicators
• Peripheral and authentication ports isolation for secure usage
• Tamper evident label and anti-tampering technology
• No wireless devices connected
• Ensures only trusted admin gains access

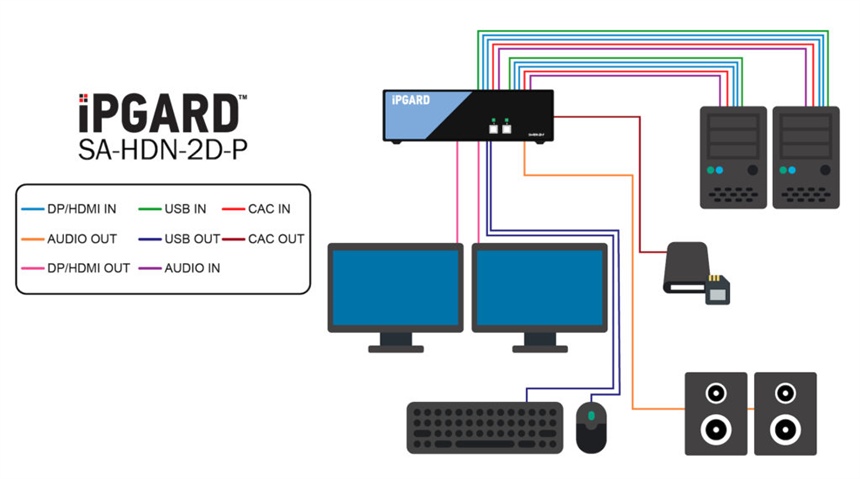

SA-HDN-2D-P Diagram

Specification:
VIDEO

Format DisplayPort1.2a, HDMI2.0
Input Interface (4) DisplayPort, (4) HDMI
Output Interface (2) DisplayPort, (2) HDMI
Max Resolution UHD/4K (3840x2160 @ 60Hz)
Supported Resolutions 720p (1280×720 @60Hz)
FHD/1080p (1920×1080 @60Hz)
QHD/1440p (2560×1440 @60Hz)
DDC 5 volts p-p (TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.

USB

Input Interface (4) USB Type B
Output Interface (2) USB 1.1 Type A for KM Devices
Emulation USB 1.1 and USB 2.0 Compatible
CAC Configurable USB 2.0 Port

AUDIO

Audio Input (2) 3.5mm stereo audio
Audio Output (1) 3.5mm stereo audio

CONTROL

Front Panel Front panel SELECT buttons

OTHER

Power External 100-240 VAC/ 12VDC2A @ 24W
Dimensions 8.8” W x 2.63” H x 6.69” D
Weight 3.85 lbs
Approvals NIAP PP 4.0, UL, CE, ROHS Compliant, ICES-003, FCC Class A
Environment ISO 14025 Complaint
Operating Temp. +32 to +104°F (0 to +40°C)
Storage Temp. -4 to 140°F (-20 to +60°C)
Humidity Up to 80% (no condensation)
