KE6948AR - ATEN - Rugged DVI-I Dual-Display KVM over IP Receiver *NEW* - COMING SOON

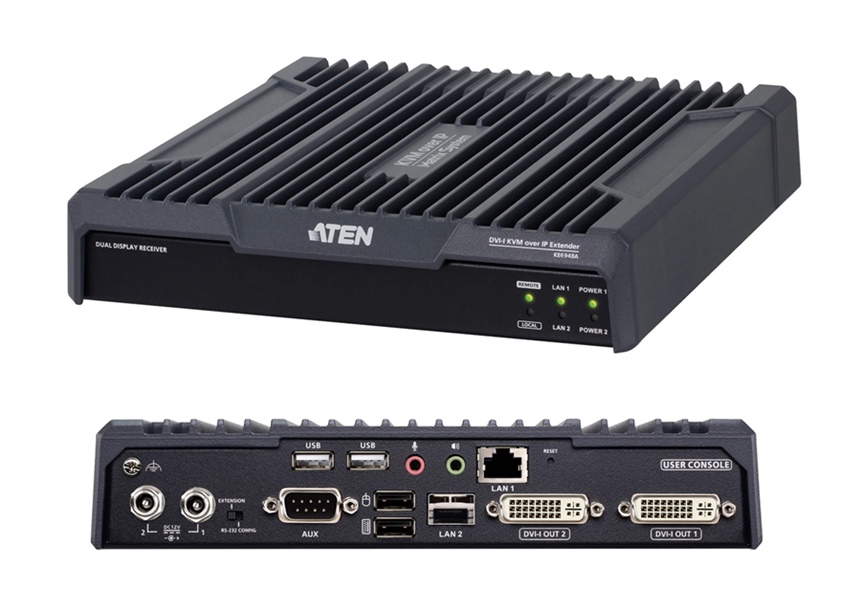

KE6948AR - DVI-I Dual-Display KVM over IP Receiver

Description:
The ATEN KE6948AR is an industrial-grade KVM over IP receiver certified to IEC 60945 and IACS E10 standards, specifically engineered to meet DNV-GL requirements for mission-critical Maritime control rooms and data centers. This advanced solution enables secure, zero-latency remote access to computer systems over IP networks.

Features:
An industrial-grade, marine-certified KVM over IP extender delivering secure, zero-latency remote access for mission-critical maritime control rooms and data centers.

• Designed to meet DNV, IEC 60945, IACS E10 certification compliance
• Intuitive control – boundless Switching and 36-source Panel Array™ mode for seamless monitoring
• Peripheral Integration – high-speed Virtual Media and RS-232 serial support
• Massive visualization supports 12 x 12 video walls and multi-display grouping for complex layouts

Specification:
Connectors

USB Port 2 x USB Type A Female (White)
Console Ports 2 x USB Type A Female (White)
2 x DVI-I Female (White)
1 x Mini Stereo Jack (Green)
1 x Mini Stereo Jack (Pink)
1 x DB-9 Male (Black)
KVM Ports N/A
Power 2 x Lockable DC Jack (Black)
LAN Ports 1 x RJ-45 (Black)
1 x SFP Slot
Switches
Reset 1 x Semi-recessed Pushbutton
Mode Selection 1 x Slide Switch (Extension, RS-232 Config)
LEDs
10/100/1000 Mbps 1 x LED for RJ45 (10/100: Off, 1000: Green)
1 x LED for SFP slot (10/100: Off, 1000: Green)
Power 2 (Green)
Local 1 (Green)
Remote 1 (Green)
Power Consumption DC12V:14.46W:110BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Video Resolution Up to 1920 x 1200 @ 60Hz
Latency < 5ms
Environmental
Operating Temperature -15–55°C
Storage Temperature -20–60°C
Humidity 0–95% RH, Non-condensing
Physical Properties
Housing Metal
Weight 2.36 kg ( 5.2 lb )
Dimensions (L x W x H) 21.47 x 21.11 x 4.18 cm
(8.45 x 8.31 x 1.65 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
