CL3708NX - ATEN - 8-Port USB HDMI Single Rail WideScreen LCD KVM Switch *NEW*

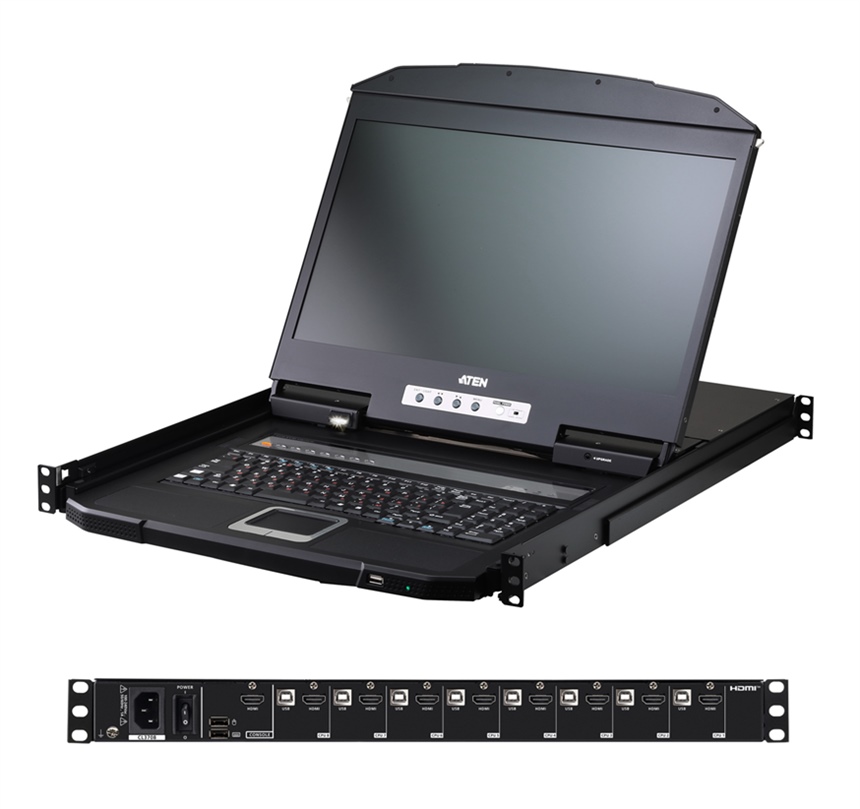

CL3708NX - 8-Port USB HDMI Single Rail WideScreen LCD KVM Switch - Standard Resolution, High Brightness model

Description:
The ATEN CL3708 is a space-efficient 1U single-rail LCD KVM switch designed for environments where space is limited, such as control rooms across various industries. Integrating an 18.5" LED-backlit widescreen monitor, full keyboard, and touchpad into a short-depth sliding housing, it provides reliable local access while maximizing valuable rack space.

Features:
A compact 1U LCD KVM switch for efficient multi-system control in space-limited control rooms and data centers.


• 1U short-depth integrated design optimizes rack space usage
• Manages 8 computers with flexible cascade expansion
• 18.5" LED-backlit widescreen delivers crisp and stable FHD visuals (CL3708NW)
• Multiple switching options via pushbuttons, hotkeys, and OSD enabling secure, centralized control

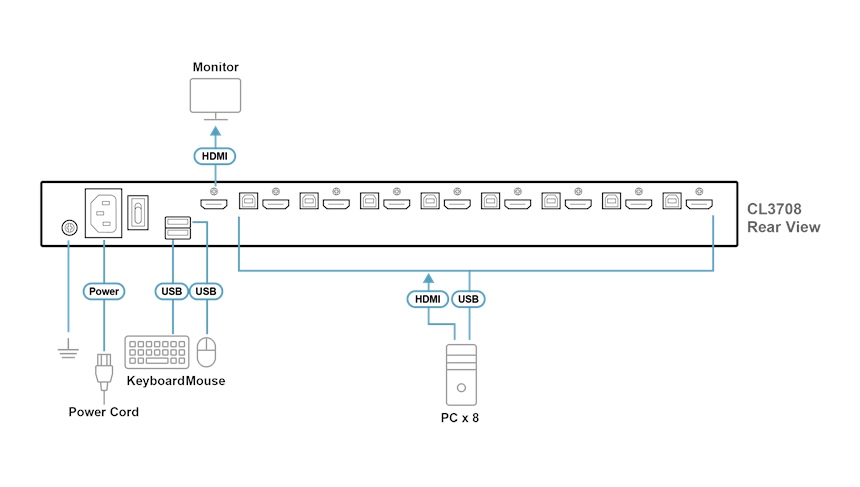

CL3708 Diagram

Specification:
CL3708NX Specifications
Function CL3708NX

Computer Connections
Direct 8
Maximum 128 (via Cascade)
Port Selection OSD, Hotkey, Pushbutton
Connectors
KVM Ports 8 × HDMI Female, 8 × USB Type-B Female
Firmware Upgrade 1 × 3.5mm Audio Jack Female (Black)
Power 1 × IEC 60320/C14
External Mouse Port 1 × USB Type-A Female (Front)
External Console Ports 1 × HDMI Female, 2 × USB Type-A Female
Switches
Port Selection 8 × Pushbutton
Reset 1 × Semi-recessed Pushbutton
Firmware Upgrade 1 × Slide Switch
Power 1 × Rocker Switch
LCD Control 4 × Pushbutton
LCD Power 1 × LED Pushbutton
LEDs
Online 8 (Orange)
Selected 8 (Green)
Power 1 × KVM Console (Dark Green), 1 × LCD (Orange)
Lock 1 × Num Lock (Green), 1 × Caps Lock (Green), 1 × Scroll Lock (Green)
LED Illumination Light 1 × LED Illumination Light
Panel Specifications
LCD Module 18.5" TFT-LCD
Resolution 1366 × 768 @ 60Hz
Response Time 5ms
Viewing Angle 170° (H), 160° (V)
Pixel Pitch 0.3mm × 0.3mm
Support Color 16.77M colors
Contrast Ratio 1000:1
Luminance 450 cd/m²
Video
Input Video Resolution Up to 1920 × 1200 @ 60Hz; 1366 × 768 @ 60Hz, DDC2B
Second Console 1920 × 1200 @ 60Hz
Scan Interval 1–255 seconds
Emulation
Keyboard / Mouse USB
Power
Maximum Input Power Rating 100–240 VAC, 50/60Hz, 1A
Power Consumption AC110V: 25.5W (126 BTU/h)
AC220V: 26.1W (129 BTU/h)
Environmental
Operating Temperature 0–40°C
Storage Temperature -20–60°C
Humidity 0–80% RH, Non-condensing
Physical Properties
Housing Metal + Plastic
Rail Type Single Rail
Weight 10.59kg (23.33lb)
Dimensions (L × W × H) 48.06 × 63.10 × 4.28cm (18.92 × 24.84 × 1.69in.)
Body Dimensions (L × W × H) 44.92 × 58.4 × 4.28cm (17.69 × 22.99 × 1.69in.)

Notes Body dimensions exclude I/O ports, handles, and mounting brackets. For some rack mount products, standard dimensions WxDxH are expressed as LxWxH.
